SDO HMI 2014-10-13 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.87 | 280.40 | 52.63 | 379.07 | -8.90 | 318.41 | -66.89 | 102.14 | 0.9282 | 548.6 | 182.1 | |
|
previous
or next observation for the same group /

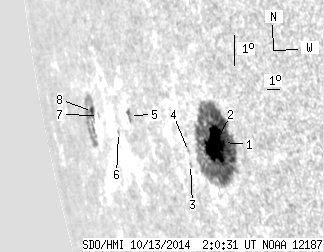

back to the solar disc SDO HMI 2014-10-13 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 235.59 | 0.31 | 285.85 | -8.76 | 321.58 | -63.71 | 102.56 | 0.9096 | 1052.3 | 203.6 | |
| 37.28 | -1.00 | 45.22 | -1.00 | -8.88 | 320.91 | -64.38 | 102.56 | 0.9145 | 717.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.62 | -9.70 | 318.85 | -66.45 | 103.02 | 0.9291 | 317.0 | 198.6 | |
| 0.00 | 0.96 | 0.00 | 1.27 | -9.30 | 318.85 | -66.45 | 102.60 | 0.9286 | 262.0 | 216.3 | |
| 0.00 | 4.46 | 0.00 | 7.36 | -8.67 | 314.10 | -71.20 | 101.09 | 0.9549 | -536.0 | -435.4 | |
| 0.00 | 1.58 | 0.00 | 2.82 | -9.33 | 312.68 | -72.62 | 101.54 | 0.9624 | -333.0 | -273.1 | |
| 0.00 | 1.05 | 0.00 | 2.13 | -9.02 | 310.67 | -74.63 | 100.90 | 0.9709 | -332.0 | -301.3 | |
| 3.33 | 35.53 | 7.10 | 78.02 | -8.96 | 309.99 | -75.31 | 100.74 | 0.9736 | -143.9 | 204.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
