SDO HMI 2014-10-13 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.73 | 281.56 | 56.26 | 370.73 | -8.90 | 318.44 | -66.30 | 102.25 | 0.9245 | 544.2 | 184.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

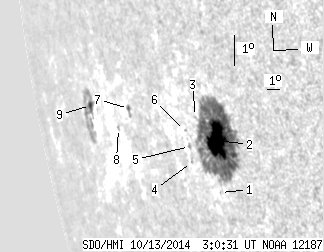

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.32 | -10.53 | 320.61 | -64.14 | 104.38 | 0.9150 | 126.0 | 142.3 | |
| 40.61 | 236.13 | 48.21 | 280.49 | -8.90 | 320.91 | -63.83 | 102.68 | 0.9107 | 732.1 | 198.6 | |
| 0.00 | 0.70 | 0.00 | 0.87 | -8.29 | 319.62 | -65.13 | 101.77 | 0.9187 | -283.0 | -272.6 | |
| 0.00 | 0.44 | 0.00 | 0.57 | -9.78 | 318.79 | -65.96 | 103.20 | 0.9260 | 148.0 | 76.8 | |
| 0.00 | 1.66 | 0.00 | 2.15 | -9.28 | 318.83 | -65.92 | 102.68 | 0.9252 | 237.0 | 182.6 | |
| 0.00 | 0.53 | 0.00 | 0.68 | -8.81 | 318.63 | -66.12 | 102.14 | 0.9259 | 186.0 | 262.2 | |
| 0.88 | 4.20 | 1.40 | 6.73 | -8.59 | 314.05 | -70.70 | 101.09 | 0.9523 | -426.6 | -399.7 | |
| 0.00 | 1.23 | 0.00 | 2.13 | -9.34 | 312.72 | -72.02 | 101.64 | 0.9596 | -331.0 | -250.0 | |
| 3.24 | 36.41 | 6.65 | 76.79 | -8.92 | 309.93 | -74.82 | 100.77 | 0.9716 | -135.2 | 202.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
