SDO HMI 2014-10-13 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.64 | 504.97 | 39.42 | 282.27 | -20.71 | 17.52 | -6.68 | 166.41 | 0.4643 | 1054.8 | 376.2 | |
|
previous
or next observation for the same group /

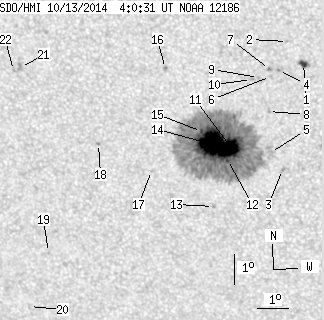

back to the solar disc SDO HMI 2014-10-13 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 5.78 | 1.76 | 3.14 | -18.03 | 20.37 | -3.83 | 171.13 | 0.4141 | 1065.1 | 794.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -17.31 | 19.88 | -4.32 | 169.70 | 0.4041 | 790.0 | 579.6 | |
| 0.00 | 2.19 | 0.00 | 1.23 | -21.56 | 19.60 | -4.60 | 170.84 | 0.4707 | -725.0 | -592.1 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -18.27 | 19.57 | -4.63 | 169.44 | 0.4199 | 1032.0 | 878.8 | |
| 0.00 | 8.32 | 0.00 | 4.64 | -20.99 | 19.23 | -4.97 | 169.90 | 0.4629 | 160.0 | 126.6 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -18.46 | 19.31 | -4.89 | 168.96 | 0.4237 | 679.0 | 535.3 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -18.23 | 19.29 | -4.91 | 168.79 | 0.4202 | 946.0 | 800.5 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -19.62 | 19.21 | -4.99 | 169.28 | 0.4420 | 860.0 | 679.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.50 | 18.93 | -5.27 | 168.14 | 0.4255 | 854.0 | 645.9 | |
| 0.00 | 1.93 | 0.00 | 1.05 | -18.57 | 18.71 | -5.49 | 167.69 | 0.4273 | 947.0 | 673.2 | |
| 20.22 | 465.55 | 11.30 | 260.34 | -20.84 | 17.98 | -6.22 | 167.35 | 0.4644 | 1433.4 | 404.7 | |
| 0.26 | -11.00 | 0.15 | -11.00 | -21.24 | 17.83 | -6.37 | 167.27 | 0.4710 | 873.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -22.84 | 17.30 | -6.90 | 167.07 | 0.4966 | -482.0 | -526.0 | |
| 45.08 | -11.00 | 25.19 | -11.00 | -20.74 | 17.37 | -6.83 | 166.11 | 0.4651 | 1505.7 | 999999 | |
| 1.84 | -11.00 | 1.02 | -11.00 | -20.31 | 17.04 | -7.16 | 165.21 | 0.4599 | 1212.9 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -18.24 | 15.99 | -8.21 | 161.69 | 0.4336 | -1059.0 | -858.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -21.65 | 15.35 | -8.85 | 162.84 | 0.4868 | 309.0 | 317.0 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -20.77 | 13.68 | -10.52 | 159.19 | 0.4824 | 795.0 | 659.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -24.53 | 11.70 | -12.50 | 158.74 | 0.5452 | -679.0 | -567.8 | |
| 0.00 | 2.10 | 0.00 | 1.27 | -26.45 | 10.84 | -13.36 | 158.83 | 0.5752 | -585.0 | -447.2 | |
| 0.00 | 3.68 | 0.00 | 2.05 | -18.30 | 11.34 | -12.86 | 152.69 | 0.4626 | -817.0 | -751.0 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -18.40 | 11.10 | -13.10 | 152.38 | 0.4657 | -699.0 | -485.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
