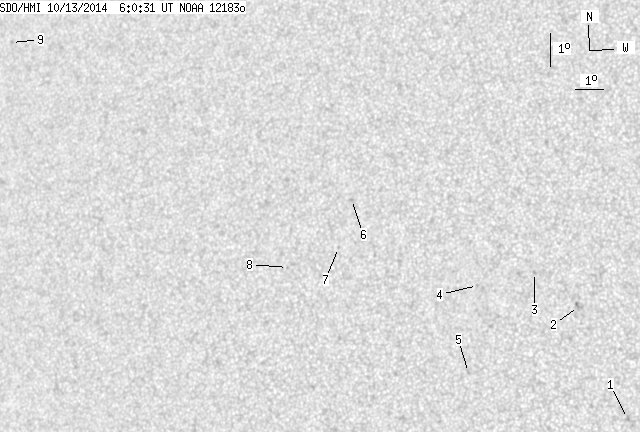

SDO HMI 2014-10-13 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.61 | 0.00 | 7.01 | 14.94 | 357.97 | -25.14 | 68.07 | 0.4403 | -649.7 | -538.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.90 | 4.83 | -18.27 | 73.63 | 0.3223 | -798.0 | -672.4 | |
| 0.00 | 3.41 | 0.00 | 1.82 | 14.22 | 2.99 | -20.12 | 65.92 | 0.3667 | -988.0 | -768.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 15.19 | 1.43 | -21.67 | 64.92 | 0.3951 | -904.0 | -744.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 14.73 | 359.57 | -23.53 | 67.49 | 0.4197 | -870.0 | -702.8 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 12.10 | 359.54 | -23.56 | 73.66 | 0.4091 | -795.0 | -489.7 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 17.15 | 354.88 | -28.23 | 65.60 | 0.4983 | -742.0 | -564.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 15.67 | 354.65 | -28.46 | 68.58 | 0.4948 | -737.0 | -629.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 14.98 | 352.94 | -30.17 | 70.75 | 0.5163 | -732.0 | -636.3 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 21.19 | 340.61 | -42.49 | 65.47 | 0.6947 | 719.0 | 580.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
