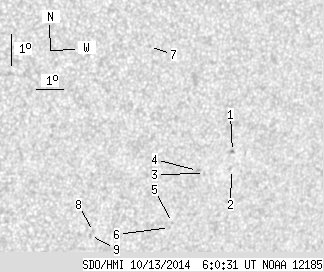

SDO HMI 2014-10-13 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.55 | 0.00 | 6.06 | -16.56 | 54.94 | 31.84 | 233.89 | 0.6285 | 470.2 | 392.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.74 | -15.72 | 57.00 | 33.89 | 236.66 | 0.6448 | 721.0 | 647.9 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -16.30 | 57.07 | 33.97 | 235.94 | 0.6496 | 538.0 | 542.4 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -16.37 | 56.07 | 32.97 | 235.08 | 0.6391 | 565.0 | 419.2 | |
| 0.00 | 2.10 | 0.00 | 1.34 | -16.26 | 55.79 | 32.69 | 235.00 | 0.6352 | 566.0 | 431.3 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -17.90 | 55.18 | 32.08 | 232.33 | 0.6408 | 519.0 | 454.9 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -18.06 | 55.10 | 32.00 | 232.06 | 0.6411 | 549.0 | 455.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -12.18 | 53.42 | 30.31 | 238.86 | 0.5786 | -505.0 | -464.4 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -18.03 | 52.31 | 29.21 | 229.61 | 0.6115 | 683.0 | 483.9 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -18.16 | 52.23 | 29.13 | 229.37 | 0.6117 | 596.0 | 427.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
