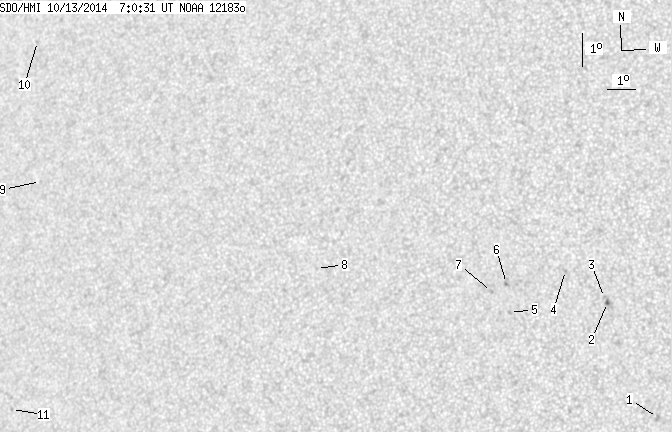

SDO HMI 2014-10-13 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 15.23 | 0.33 | 8.59 | 14.14 | 356.33 | -26.23 | 69.60 | 0.4523 | -525.7 | -468.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 1.41 | 10.88 | 4.83 | -17.72 | 73.26 | 0.3135 | -678.0 | -624.4 | |
| 0.61 | 1.93 | 0.33 | 1.02 | 14.29 | 2.96 | -19.59 | 65.23 | 0.3595 | -999.7 | -846.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 14.44 | 2.85 | -19.71 | 64.96 | 0.3620 | -588.0 | -539.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 15.21 | 1.49 | -21.07 | 64.33 | 0.3866 | -905.0 | -762.8 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 13.87 | 359.76 | -22.80 | 68.94 | 0.4048 | -802.0 | -702.6 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 14.74 | 359.57 | -22.99 | 67.05 | 0.4120 | -862.0 | -745.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 14.48 | 359.09 | -23.47 | 68.00 | 0.4177 | -724.0 | -583.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 14.91 | 352.97 | -29.58 | 70.60 | 0.5078 | -731.0 | -527.7 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 16.94 | 342.04 | -40.52 | 71.02 | 0.6595 | 591.0 | 481.3 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 21.19 | 340.63 | -41.93 | 65.28 | 0.6882 | 698.0 | 567.8 | |
| 0.00 | 1.40 | 0.00 | 0.91 | 10.03 | 342.27 | -40.29 | 81.55 | 0.6460 | -626.0 | -505.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
