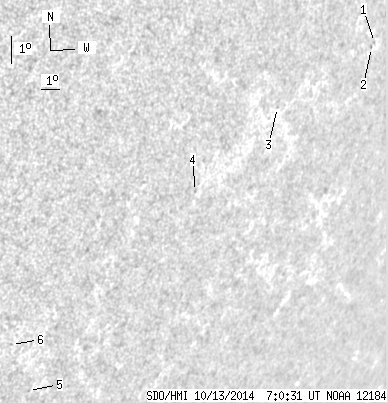

SDO HMI 2014-10-13 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.60 | 0.00 | 5.38 | -18.93 | 76.34 | 53.78 | 243.15 | 0.8561 | 139.7 | 158.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.44 | -15.20 | 82.64 | 60.08 | 249.60 | 0.8943 | 433.0 | 345.8 | |
| 0.00 | 0.61 | 0.00 | 0.67 | -15.35 | 82.52 | 59.97 | 249.41 | 0.8937 | 405.0 | 454.4 | |
| 0.00 | 0.79 | 0.00 | 0.76 | -16.81 | 77.69 | 55.13 | 246.29 | 0.8599 | 302.0 | 284.7 | |
| 0.00 | 1.05 | 0.00 | 0.95 | -19.24 | 74.40 | 51.84 | 242.36 | 0.8401 | 498.0 | 412.1 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -25.47 | 69.05 | 46.49 | 233.04 | 0.8216 | -204.0 | -251.8 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -23.76 | 67.44 | 44.88 | 234.04 | 0.8001 | -596.0 | -510.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
