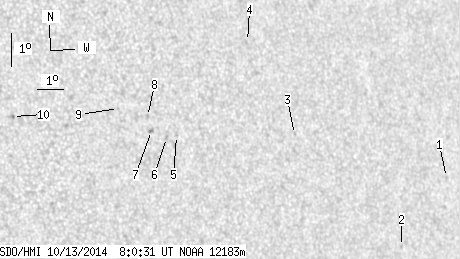

SDO HMI 2014-10-13 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.65 | 0.00 | 7.09 | 13.29 | 57.28 | 35.26 | 284.91 | 0.5819 | 312.6 | 329.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.84 | 11.66 | 66.17 | 44.15 | 280.59 | 0.6964 | -255.0 | -300.1 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 9.73 | 63.94 | 41.93 | 277.91 | 0.6672 | -531.0 | -407.7 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 13.36 | 60.28 | 38.27 | 283.98 | 0.6233 | 414.0 | 417.6 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 16.28 | 59.04 | 37.03 | 288.96 | 0.6136 | -638.0 | -641.2 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 13.61 | 55.82 | 33.81 | 285.46 | 0.5634 | 498.0 | 320.6 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 13.57 | 55.45 | 33.44 | 285.50 | 0.5580 | 762.0 | 596.2 | |
| 0.00 | 2.10 | 0.00 | 1.24 | 13.81 | 54.93 | 32.92 | 286.08 | 0.5515 | 810.0 | 665.4 | |
| 0.00 | 1.58 | 0.00 | 0.93 | 14.24 | 54.86 | 32.85 | 286.88 | 0.5515 | 617.0 | 526.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 14.54 | 53.84 | 31.83 | 287.78 | 0.5383 | 663.0 | 598.7 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 14.49 | 50.05 | 28.04 | 289.32 | 0.4843 | 786.0 | 713.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
