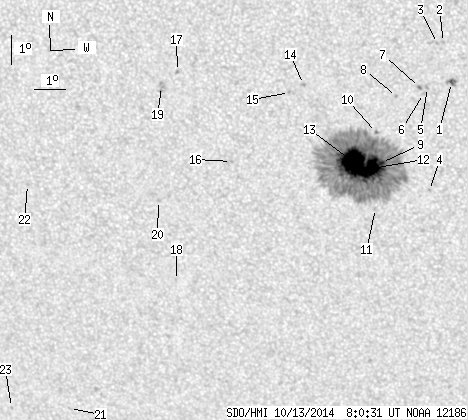

SDO HMI 2014-10-13 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.14 | 501.78 | 38.48 | 279.50 | -20.71 | 17.39 | -4.62 | 170.52 | 0.4576 | 938.3 | 360.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 5.69 | 0.62 | 3.09 | -18.05 | 20.47 | -1.54 | 176.42 | 0.4100 | 1107.5 | 810.4 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -16.74 | 20.24 | -1.77 | 175.62 | 0.3893 | 791.0 | 635.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.78 | 20.05 | -1.96 | 175.16 | 0.3901 | 808.0 | 614.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.64 | 19.73 | -2.28 | 175.43 | 0.4673 | -827.0 | -685.9 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -18.21 | 19.72 | -2.29 | 174.70 | 0.4135 | 771.0 | 699.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -18.41 | 19.59 | -2.42 | 174.45 | 0.4169 | 757.0 | 661.4 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -18.21 | 19.46 | -2.55 | 174.12 | 0.4140 | 920.0 | 808.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -18.51 | 18.73 | -3.28 | 172.55 | 0.4200 | 843.0 | 635.0 | |
| 1.31 | 468.24 | 0.73 | 260.85 | -20.71 | 18.20 | -3.81 | 172.13 | 0.4554 | 1173.4 | 388.5 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -19.71 | 18.07 | -3.94 | 171.51 | 0.4402 | 1000.0 | 792.5 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -22.26 | 17.97 | -4.04 | 172.15 | 0.4797 | -129.0 | -126.7 | |
| 22.67 | -9.00 | 12.63 | -9.00 | -20.91 | 17.88 | -4.13 | 171.53 | 0.4592 | 1373.0 | 999999 | |
| 44.02 | -9.00 | 24.50 | -9.00 | -20.71 | 17.31 | -4.70 | 170.31 | 0.4576 | 1470.1 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -18.14 | 15.80 | -6.21 | 165.88 | 0.4229 | -774.0 | -639.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.41 | 15.35 | -6.66 | 165.06 | 0.4288 | -847.0 | -724.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -20.73 | 13.38 | -8.64 | 162.62 | 0.4720 | 707.0 | 559.7 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -17.77 | 11.82 | -10.20 | 157.23 | 0.4373 | -860.0 | -694.9 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -24.83 | 11.26 | -10.75 | 161.67 | 0.5402 | -765.0 | -577.6 | |
| 0.00 | 4.90 | 0.00 | 2.71 | -18.28 | 11.27 | -10.74 | 156.63 | 0.4478 | -693.0 | -676.8 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -22.09 | 10.90 | -11.11 | 159.15 | 0.5038 | -762.0 | -647.0 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -29.51 | 7.01 | -15.00 | 158.70 | 0.6224 | -584.0 | -384.6 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -21.65 | 6.60 | -15.41 | 151.79 | 0.5247 | -663.0 | -396.0 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -29.54 | 4.93 | -17.08 | 156.12 | 0.6336 | -664.0 | -520.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
