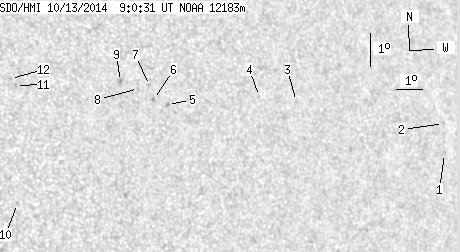

SDO HMI 2014-10-13 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.09 | 0.00 | 7.37 | 13.42 | 56.61 | 35.15 | 285.10 | 0.5797 | 495.6 | 402.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.67 | 11.43 | 66.08 | 44.62 | 280.23 | 0.7019 | -490.0 | -365.5 | |
| 0.00 | 0.96 | 0.00 | 0.67 | 12.33 | 66.23 | 44.77 | 281.50 | 0.7044 | -388.0 | -455.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 13.40 | 60.37 | 38.91 | 283.92 | 0.6318 | 594.0 | 458.9 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 13.65 | 58.97 | 37.50 | 284.60 | 0.6136 | 561.0 | 471.4 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 13.61 | 55.46 | 34.00 | 285.43 | 0.5659 | 683.0 | 650.6 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 13.79 | 54.97 | 33.51 | 285.89 | 0.5596 | 820.0 | 695.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 14.22 | 54.90 | 33.43 | 286.67 | 0.5596 | 567.0 | 482.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 14.16 | 54.48 | 33.01 | 286.68 | 0.5537 | 697.0 | 502.2 | |
| 0.00 | 2.28 | 0.00 | 1.34 | 14.40 | 53.86 | 32.39 | 287.34 | 0.5457 | 748.0 | 642.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 10.93 | 49.73 | 28.26 | 281.94 | 0.4772 | 721.0 | 537.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 14.48 | 50.10 | 28.63 | 289.02 | 0.4928 | 771.0 | 651.3 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 14.70 | 49.95 | 28.49 | 289.53 | 0.4915 | 663.0 | 586.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
