SDO HMI 2014-10-13 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.96 | 0.00 | 3.87 | -15.95 | 55.51 | 34.04 | 236.31 | 0.6486 | 222.0 | 223.9 | |
|
previous
or next observation for the same group /

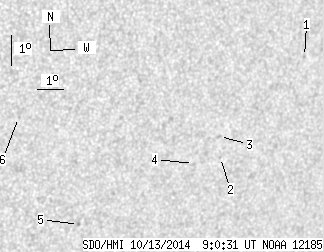

back to the solar disc SDO HMI 2014-10-13 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.65 | -13.29 | 59.89 | 38.42 | 242.99 | 0.6812 | -662.0 | -555.2 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -16.33 | 57.22 | 35.76 | 237.23 | 0.6693 | 618.0 | 421.2 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -15.65 | 57.04 | 35.58 | 238.00 | 0.6630 | 667.0 | 625.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -16.46 | 56.22 | 34.75 | 236.33 | 0.6591 | 389.0 | 350.6 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -18.20 | 52.27 | 30.80 | 230.86 | 0.6295 | 697.0 | 554.6 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -14.60 | 49.52 | 28.05 | 233.25 | 0.5702 | -377.0 | -435.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
