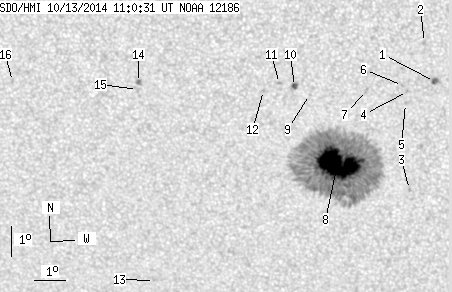

SDO HMI 2014-10-13 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.38 | 507.95 | 42.40 | 282.17 | -20.66 | 17.42 | -2.95 | 173.87 | 0.4531 | 938.0 | 330.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 3.59 | 0.81 | 1.95 | -18.06 | 20.60 | 0.23 | 180.53 | 0.4093 | 988.0 | 820.7 | |
| 0.00 | 1.92 | 0.00 | 1.03 | -16.79 | 20.28 | -0.09 | 179.78 | 0.3888 | 855.0 | 684.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -21.65 | 19.79 | -0.58 | 178.84 | 0.4659 | -857.0 | -739.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -18.39 | 19.74 | -0.63 | 178.56 | 0.4146 | 787.0 | 659.1 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -18.78 | 19.68 | -0.69 | 178.44 | 0.4209 | 752.0 | 515.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -18.19 | 19.59 | -0.78 | 178.19 | 0.4115 | 911.0 | 768.2 | |
| 0.00 | 2.10 | 0.00 | 1.14 | -18.36 | 18.45 | -1.92 | 175.59 | 0.4151 | 964.0 | 717.7 | |
| 73.32 | 480.84 | 40.73 | 267.33 | -20.78 | 17.49 | -2.88 | 174.05 | 0.4546 | 1310.6 | 353.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -18.50 | 16.65 | -3.72 | 171.55 | 0.4205 | -413.0 | -347.1 | |
| 1.57 | 3.15 | 0.86 | 1.72 | -18.24 | 16.18 | -4.19 | 170.40 | 0.4176 | -903.1 | -747.3 | |
| 0.00 | 1.84 | 0.00 | 1.00 | -18.14 | 15.71 | -4.66 | 169.30 | 0.4174 | -882.0 | -637.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -18.38 | 15.20 | -5.17 | 168.27 | 0.4227 | -846.0 | -613.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -24.85 | 11.33 | -9.04 | 164.42 | 0.5330 | -695.0 | -565.8 | |
| 0.00 | 3.06 | 0.00 | 1.68 | -18.16 | 11.24 | -9.13 | 159.71 | 0.4367 | -889.0 | -748.0 | |
| 0.00 | 2.71 | 0.00 | 1.49 | -18.39 | 11.19 | -9.18 | 159.81 | 0.4403 | -499.0 | -453.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -18.21 | 7.19 | -13.18 | 152.00 | 0.4632 | -630.0 | -458.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
