SDO HMI 2014-10-13 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.42 | 501.14 | 42.97 | 278.41 | -20.70 | 17.45 | -2.37 | 175.09 | 0.4529 | 821.0 | 331.8 | |
|
previous
or next observation for the same group /

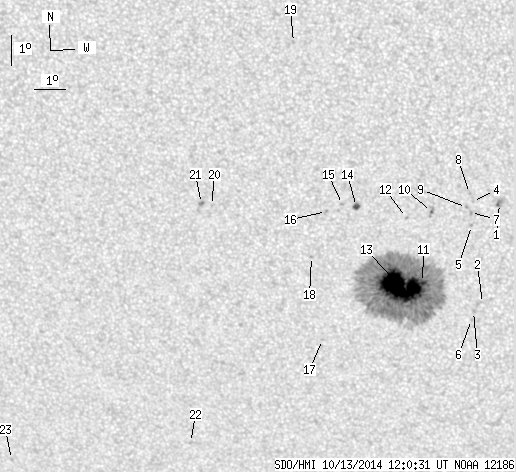

back to the solar disc SDO HMI 2014-10-13 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.29 | 0.00 | 2.33 | -18.06 | 20.65 | 0.82 | 181.92 | 0.4095 | 897.0 | 767.2 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -21.38 | 20.11 | 0.29 | 180.59 | 0.4617 | -31.0 | -47.4 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -21.65 | 19.82 | 0.00 | 180.00 | 0.4658 | -876.0 | -741.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -18.00 | 19.79 | -0.03 | 179.93 | 0.4082 | 616.0 | 599.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -18.78 | 19.76 | -0.06 | 179.87 | 0.4207 | 767.0 | 600.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.93 | 19.76 | -0.06 | 179.87 | 0.4700 | -655.0 | -608.9 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -18.36 | 19.73 | -0.09 | 179.79 | 0.4139 | 814.0 | 617.3 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -17.73 | 19.70 | -0.12 | 179.72 | 0.4040 | 724.0 | 618.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -18.19 | 19.61 | -0.22 | 179.50 | 0.4113 | 872.0 | 759.9 | |
| 0.35 | 4.37 | 0.19 | 2.38 | -18.32 | 18.50 | -1.32 | 176.96 | 0.4140 | 873.2 | 669.0 | |
| 2.27 | 468.00 | 1.26 | 260.15 | -20.68 | 18.19 | -1.63 | 176.61 | 0.4514 | 1103.3 | 356.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -18.52 | 17.71 | -2.11 | 175.19 | 0.4180 | 714.0 | 563.1 | |
| 72.61 | -11.00 | 40.33 | -11.00 | -20.81 | 17.49 | -2.33 | 175.17 | 0.4543 | 1285.3 | 999999 | |
| 2.19 | 3.67 | 1.19 | 2.00 | -18.17 | 16.14 | -3.68 | 171.52 | 0.4152 | -945.0 | -774.7 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -18.10 | 15.70 | -4.12 | 170.50 | 0.4153 | -800.0 | -596.2 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -18.34 | 15.19 | -4.63 | 169.45 | 0.4204 | -859.0 | -629.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -22.62 | 14.92 | -4.90 | 170.64 | 0.4869 | 646.0 | 551.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -19.83 | 14.67 | -5.15 | 169.01 | 0.4451 | -641.0 | -521.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.90 | 14.30 | -5.52 | 163.83 | 0.3381 | -769.0 | -625.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.18 | 11.55 | -8.27 | 161.49 | 0.4324 | -744.0 | -542.8 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -18.12 | 11.24 | -8.59 | 160.79 | 0.4331 | -928.0 | -785.0 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -26.26 | 10.33 | -9.49 | 164.48 | 0.5545 | -550.0 | -453.4 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -27.01 | 4.10 | -15.72 | 155.96 | 0.5947 | -636.0 | -493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
