SDO HMI 2014-10-13 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.51 | 318.40 | 52.41 | 346.55 | -8.96 | 318.65 | -61.17 | 103.35 | 0.8887 | 470.7 | 172.8 | |
|
previous
or next observation for the same group /

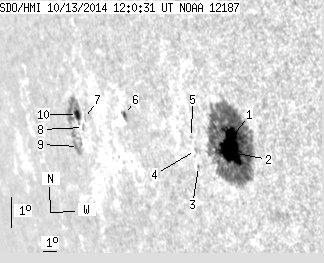

back to the solar disc SDO HMI 2014-10-13 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.01 | 266.63 | 16.03 | 268.69 | -8.60 | 321.06 | -58.76 | 103.45 | 0.8712 | 794.5 | 198.7 | |
| 28.08 | -1.00 | 28.40 | -1.00 | -9.08 | 320.88 | -58.94 | 103.94 | 0.8736 | 597.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.33 | -9.71 | 318.74 | -61.09 | 104.14 | 0.8917 | 320.0 | 237.1 | |
| 0.00 | 1.22 | 0.00 | 1.33 | -9.22 | 318.70 | -61.13 | 103.59 | 0.8912 | 201.0 | 205.1 | |
| 0.00 | 1.22 | 0.00 | 1.33 | -8.83 | 318.56 | -61.27 | 103.14 | 0.8916 | 223.0 | 169.6 | |
| 1.22 | 3.32 | 1.56 | 4.25 | -8.55 | 314.05 | -65.77 | 101.91 | 0.9233 | -511.2 | -407.5 | |
| 0.00 | 1.84 | 0.00 | 2.73 | -9.00 | 310.68 | -69.14 | 101.77 | 0.9442 | -436.0 | -332.9 | |
| 0.00 | 1.75 | 0.00 | 2.63 | -9.30 | 310.46 | -69.36 | 102.04 | 0.9457 | -376.0 | -325.5 | |
| 0.00 | 9.10 | 0.00 | 14.33 | -9.96 | 309.71 | -70.11 | 102.60 | 0.9504 | 122.0 | 107.4 | |
| 4.20 | 32.10 | 6.42 | 49.93 | -8.94 | 310.10 | -69.73 | 101.60 | 0.9474 | -229.6 | 155.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
