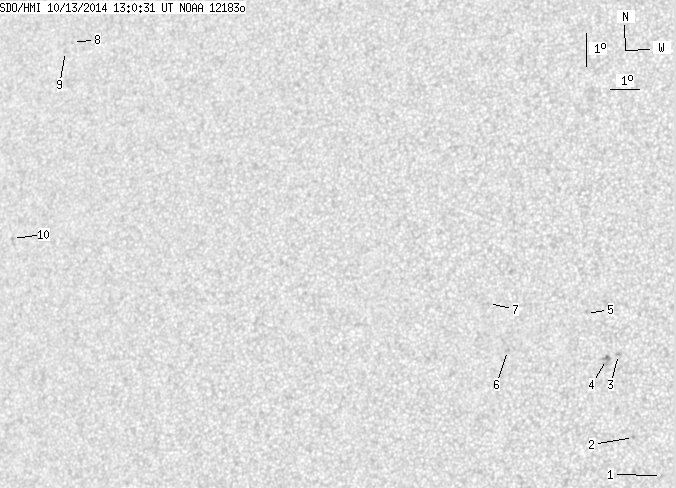

SDO HMI 2014-10-13 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.70 | 0.00 | 9.17 | 15.95 | 356.97 | -22.31 | 62.88 | 0.4028 | -365.1 | -386.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.40 | 10.89 | 5.01 | -14.26 | 69.87 | 0.2589 | -781.0 | -600.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 12.01 | 4.07 | -15.21 | 67.07 | 0.2798 | -850.0 | -686.0 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 14.50 | 3.43 | -15.84 | 60.12 | 0.3062 | -920.0 | -705.0 | |
| 0.00 | 5.25 | 0.00 | 2.73 | 14.33 | 3.06 | -16.22 | 61.12 | 0.3104 | -922.0 | -814.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 15.71 | 2.30 | -16.97 | 58.34 | 0.3316 | -310.0 | -228.9 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 14.51 | 359.83 | -19.44 | 64.45 | 0.3588 | -893.0 | -791.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 15.91 | 359.07 | -20.21 | 61.74 | 0.3788 | -708.0 | -544.2 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 23.22 | 342.55 | -36.72 | 60.15 | 0.6358 | 595.0 | 511.3 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 22.92 | 342.36 | -36.91 | 60.69 | 0.6367 | 524.0 | 459.0 | |
| 0.00 | 1.57 | 0.00 | 0.99 | 17.08 | 341.85 | -37.43 | 69.87 | 0.6210 | 614.0 | 479.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
