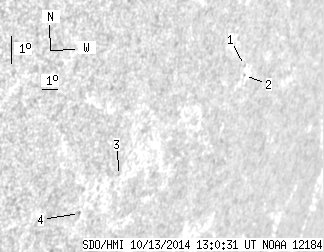

SDO HMI 2014-10-13 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 2.29 | -17.80 | 77.01 | 57.74 | 245.99 | 0.8822 | 341.2 | 353.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.32 | -15.09 | 82.49 | 63.22 | 250.55 | 0.9158 | 165.0 | 252.3 | |
| 0.00 | 0.26 | 0.00 | 0.32 | -15.43 | 82.67 | 63.40 | 250.25 | 0.9175 | 253.0 | 202.7 | |
| 0.00 | 0.44 | 0.00 | 0.45 | -18.01 | 76.12 | 56.84 | 245.57 | 0.8764 | 426.0 | 408.6 | |
| 0.00 | 1.22 | 0.00 | 1.20 | -19.08 | 74.38 | 55.11 | 243.80 | 0.8660 | 521.0 | 401.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
