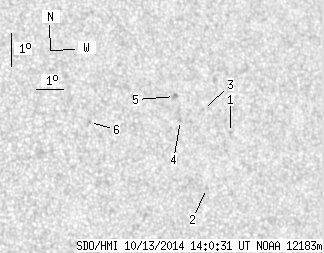

SDO HMI 2014-10-13 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.10 | 0.00 | 5.55 | 13.51 | 53.95 | 35.22 | 284.96 | 0.5826 | 657.7 | 558.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.71 | 13.08 | 55.87 | 37.15 | 283.77 | 0.6079 | 637.0 | 426.7 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 11.46 | 54.69 | 35.97 | 281.29 | 0.5892 | 345.0 | 359.4 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 13.83 | 54.97 | 36.25 | 285.22 | 0.5972 | 769.0 | 564.2 | |
| 0.00 | 1.57 | 0.00 | 0.96 | 13.56 | 54.05 | 35.32 | 284.99 | 0.5841 | 770.0 | 641.1 | |
| 0.00 | 2.80 | 0.00 | 1.71 | 14.29 | 53.95 | 35.23 | 286.26 | 0.5845 | 852.0 | 692.7 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 13.69 | 50.70 | 31.97 | 286.20 | 0.5379 | 573.0 | 462.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
