SDO HMI 2014-10-13 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.34 | 317.52 | 54.43 | 330.41 | -8.95 | 318.92 | -59.80 | 103.65 | 0.8780 | 515.6 | 178.6 | |
|
previous
or next observation for the same group /

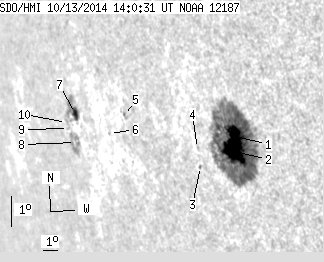

back to the solar disc SDO HMI 2014-10-13 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.11 | 273.54 | 19.50 | 267.03 | -8.59 | 321.08 | -57.64 | 103.71 | 0.8618 | 858.4 | 199.0 | |
| 28.16 | -1.00 | 27.60 | -1.00 | -9.07 | 320.84 | -57.88 | 104.19 | 0.8647 | 606.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.38 | -9.73 | 318.70 | -60.02 | 104.41 | 0.8834 | 137.0 | 149.9 | |
| 0.00 | 0.52 | 0.00 | 0.55 | -9.18 | 318.68 | -60.04 | 103.79 | 0.8826 | 315.0 | 270.2 | |
| 0.00 | 2.36 | 0.00 | 2.88 | -8.60 | 314.05 | -64.68 | 102.17 | 0.9160 | -507.0 | -472.3 | |
| 0.00 | 0.61 | 0.00 | 0.79 | -9.28 | 312.71 | -66.01 | 102.64 | 0.9257 | -342.0 | -331.4 | |
| 5.07 | 20.90 | 7.33 | 30.54 | -8.91 | 310.15 | -68.57 | 101.78 | 0.9409 | -300.8 | 148.7 | |
| 0.00 | 15.57 | 0.00 | 23.14 | -9.85 | 309.75 | -68.98 | 102.68 | 0.9441 | 22.0 | 78.0 | |
| 0.00 | 1.14 | 0.00 | 1.72 | -9.46 | 309.32 | -69.41 | 102.20 | 0.9461 | 433.0 | 378.9 | |
| 0.00 | 1.57 | 0.00 | 2.38 | -9.28 | 309.22 | -69.50 | 102.00 | 0.9465 | 351.0 | 374.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
