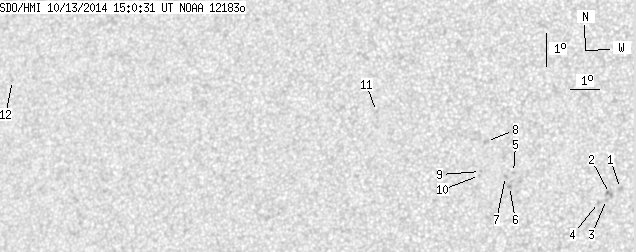

SDO HMI 2014-10-13 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.43 | 0.00 | 10.34 | 15.06 | 359.18 | -18.99 | 61.67 | 0.3546 | -691.4 | -586.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.31 | 14.55 | 3.42 | -14.76 | 58.29 | 0.2911 | -753.0 | -627.8 | |
| 0.00 | 3.41 | 0.00 | 1.77 | 14.39 | 3.08 | -15.10 | 59.31 | 0.2947 | -924.0 | -786.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.21 | 2.99 | -15.18 | 59.99 | 0.2945 | -906.0 | -696.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 14.11 | 2.74 | -15.43 | 60.66 | 0.2973 | -710.0 | -647.4 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 14.94 | 359.94 | -18.24 | 62.00 | 0.3440 | -789.0 | -673.6 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 14.51 | 359.84 | -18.33 | 63.25 | 0.3425 | -1015.0 | -921.8 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 14.81 | 359.69 | -18.49 | 62.63 | 0.3467 | -878.0 | -756.6 | |
| 0.00 | 2.89 | 0.00 | 1.53 | 15.85 | 358.97 | -19.21 | 60.78 | 0.3642 | -735.0 | -603.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 14.94 | 358.86 | -19.32 | 63.22 | 0.3596 | -661.0 | -597.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.82 | 358.84 | -19.34 | 63.55 | 0.3591 | -771.0 | -597.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 16.63 | 355.21 | -22.97 | 62.73 | 0.4224 | -834.0 | -527.7 | |
| 0.00 | 1.40 | 0.00 | 0.87 | 16.94 | 342.04 | -36.14 | 69.65 | 0.6039 | 679.0 | 538.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
