SDO HMI 2014-10-13 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.42 | 0.00 | 6.05 | 13.92 | 56.69 | 39.06 | 284.78 | 0.6330 | 414.8 | 387.6 | |
|
previous
or next observation for the same group /

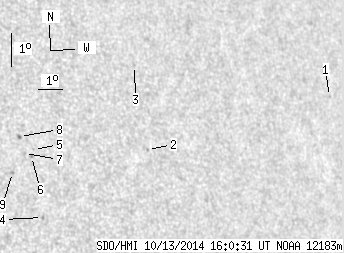

back to the solar disc SDO HMI 2014-10-13 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.73 | 14.63 | 67.28 | 49.66 | 284.14 | 0.7629 | -370.0 | -347.7 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 13.62 | 58.97 | 41.35 | 283.84 | 0.6636 | 604.0 | 511.3 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 16.18 | 59.04 | 41.42 | 287.64 | 0.6690 | -560.0 | -396.9 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 11.86 | 54.48 | 36.86 | 281.81 | 0.6020 | 645.0 | 559.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 13.91 | 54.49 | 36.87 | 285.20 | 0.6058 | 541.0 | 590.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 13.71 | 54.38 | 36.76 | 284.89 | 0.6038 | 660.0 | 612.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 13.82 | 54.13 | 36.51 | 285.13 | 0.6007 | 695.0 | 603.7 | |
| 0.00 | 1.92 | 0.00 | 1.19 | 14.34 | 54.04 | 36.41 | 286.01 | 0.6006 | 768.0 | 662.1 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 13.27 | 53.57 | 35.95 | 284.36 | 0.5920 | 750.0 | 657.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
