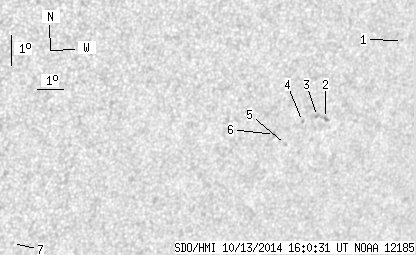

SDO HMI 2014-10-13 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.01 | 0.00 | 7.55 | -15.95 | 55.67 | 38.05 | 239.10 | 0.6923 | 146.1 | 239.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.25 | -13.29 | 60.03 | 42.41 | 245.18 | 0.7255 | -641.0 | -558.5 | |
| 0.00 | 2.89 | 0.00 | 2.02 | -15.58 | 57.38 | 39.75 | 240.80 | 0.7080 | 769.0 | 670.9 | |
| 0.00 | 1.92 | 0.00 | 1.34 | -15.49 | 57.03 | 39.41 | 240.71 | 0.7038 | 742.0 | 638.7 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -15.61 | 56.46 | 38.83 | 240.21 | 0.6983 | 431.0 | 451.0 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -16.31 | 55.94 | 38.32 | 238.98 | 0.6967 | 599.0 | 527.1 | |
| 0.00 | 2.62 | 0.00 | 1.79 | -15.95 | 55.42 | 37.80 | 239.11 | 0.6890 | -746.0 | -480.0 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -18.93 | 46.18 | 28.56 | 227.86 | 0.6121 | -131.0 | -139.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
