SDO HMI 2014-10-13 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.69 | 0.00 | 7.68 | 15.10 | 359.67 | -16.85 | 59.48 | 0.3250 | -827.0 | -689.2 | |
|
previous
or next observation for the same group /

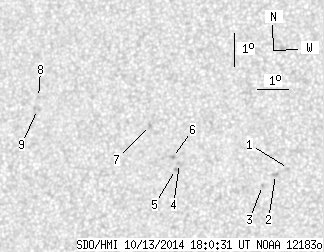

back to the solar disc SDO HMI 2014-10-13 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.62 | 3.51 | -13.01 | 54.96 | 0.2673 | -810.0 | -697.8 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 14.43 | 3.11 | -13.41 | 56.32 | 0.2712 | -948.0 | -755.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 14.09 | 2.71 | -13.80 | 58.12 | 0.2738 | -923.0 | -774.5 | |
| 0.00 | 1.92 | 0.00 | 1.00 | 14.69 | 0.02 | -16.50 | 60.49 | 0.3171 | -819.0 | -753.7 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 14.50 | 359.90 | -16.61 | 61.17 | 0.3174 | -1109.0 | -903.9 | |
| 0.00 | 2.10 | 0.00 | 1.10 | 14.86 | 359.78 | -16.74 | 60.33 | 0.3218 | -989.0 | -820.0 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 15.81 | 358.95 | -17.57 | 58.87 | 0.3407 | -894.0 | -728.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 16.54 | 355.21 | -21.31 | 61.38 | 0.3985 | -759.0 | -657.4 | |
| 0.00 | 2.45 | 0.00 | 1.32 | 16.17 | 355.22 | -21.30 | 62.22 | 0.3960 | -192.0 | -303.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
