SDO HMI 2014-10-13 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.87 | 488.82 | 41.01 | 271.47 | -20.84 | 17.33 | 0.82 | 181.71 | 0.4535 | 1064.2 | 374.3 | |
|
previous
or next observation for the same group /

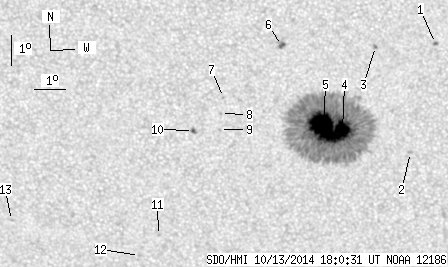

back to the solar disc SDO HMI 2014-10-13 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.86 | -18.08 | 20.77 | 4.25 | 189.82 | 0.4152 | 1036.0 | 922.7 | |
| 0.00 | 1.84 | 0.00 | 1.03 | -21.70 | 20.06 | 3.54 | 187.04 | 0.4698 | -880.0 | -690.0 | |
| 0.00 | 1.92 | 0.00 | 1.04 | -18.16 | 18.88 | 2.36 | 185.47 | 0.4126 | 1030.0 | 843.1 | |
| 18.62 | 470.74 | 10.35 | 261.44 | -20.91 | 17.86 | 1.34 | 182.77 | 0.4547 | 1394.0 | 398.3 | |
| 53.24 | -4.00 | 29.56 | -4.00 | -20.84 | 17.25 | 0.74 | 181.52 | 0.4533 | 1436.3 | 999999 | |
| 1.22 | 4.55 | 0.66 | 2.47 | -18.12 | 15.92 | -0.59 | 178.62 | 0.4102 | -970.4 | -820.9 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.84 | 14.07 | -2.45 | 174.73 | 0.4392 | -723.0 | -604.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.37 | 13.97 | -2.55 | 174.63 | 0.4477 | 505.0 | 425.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -20.91 | 13.93 | -2.59 | 174.66 | 0.4561 | 542.0 | 513.1 | |
| 0.79 | 2.27 | 0.44 | 1.27 | -20.95 | 13.09 | -3.43 | 172.97 | 0.4581 | -887.7 | -785.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -24.54 | 11.84 | -4.68 | 171.68 | 0.5150 | -688.0 | -619.6 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -25.24 | 11.18 | -5.34 | 170.78 | 0.5269 | -673.0 | -508.1 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -24.08 | 7.00 | -9.51 | 163.19 | 0.5240 | -829.0 | -653.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
