SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.27 | 0.00 | 5.95 | 13.50 | 54.66 | 39.24 | 284.01 | 0.6363 | 505.8 | 465.1 | |
|
previous
or next observation for the same group /

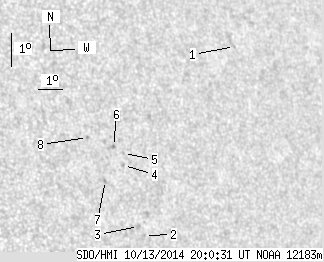

back to the solar disc SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.49 | 17.01 | 59.85 | 44.43 | 288.18 | 0.7069 | -625.0 | -530.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 11.60 | 54.84 | 39.43 | 281.02 | 0.6361 | 607.0 | 433.9 | |
| 0.00 | 2.27 | 0.00 | 1.45 | 11.88 | 54.65 | 39.24 | 281.49 | 0.6339 | 658.0 | 507.9 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 13.75 | 54.41 | 38.99 | 284.47 | 0.6335 | 661.0 | 553.3 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 14.11 | 54.48 | 39.06 | 285.01 | 0.6351 | 587.0 | 531.0 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 14.34 | 54.13 | 38.72 | 285.46 | 0.6310 | 764.0 | 676.7 | |
| 0.00 | 1.49 | 0.00 | 0.94 | 13.34 | 53.62 | 38.20 | 283.98 | 0.6224 | 704.0 | 621.9 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 14.68 | 53.17 | 37.76 | 286.22 | 0.6192 | 690.0 | 518.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
