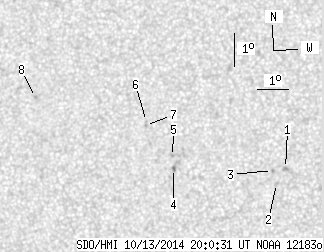

SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.63 | 0.00 | 6.04 | 14.97 | 0.79 | -14.63 | 56.44 | 0.2927 | -898.9 | -753.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.30 | 14.58 | 3.48 | -11.93 | 52.82 | 0.2522 | -954.0 | -783.3 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 14.13 | 3.22 | -12.19 | 54.90 | 0.2514 | -880.0 | -637.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 14.52 | 3.08 | -12.34 | 53.93 | 0.2571 | -835.0 | -756.1 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 14.50 | 359.93 | -15.49 | 59.58 | 0.3011 | -1073.0 | -949.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.86 | 359.87 | -15.55 | 58.61 | 0.3048 | -941.0 | -803.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 15.90 | 358.95 | -16.47 | 57.10 | 0.3261 | -718.0 | -540.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 15.78 | 358.93 | -16.49 | 57.46 | 0.3254 | -855.0 | -691.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 16.52 | 355.25 | -20.17 | 60.24 | 0.3824 | -935.0 | -756.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
