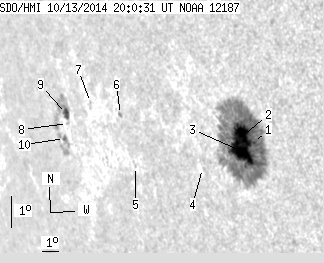

SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.22 | 343.45 | 54.01 | 323.42 | -8.96 | 319.09 | -56.33 | 104.51 | 0.8490 | 649.7 | 229.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 296.95 | 1.61 | 265.18 | -8.78 | 321.59 | -53.83 | 104.92 | 0.8278 | 1141.4 | 272.5 | |
| 21.50 | -1.00 | 19.11 | -1.00 | -8.61 | 321.05 | -54.36 | 104.57 | 0.8324 | 1002.8 | 999999 | |
| 29.11 | -1.00 | 26.06 | -1.00 | -9.12 | 320.89 | -54.53 | 105.12 | 0.8351 | 847.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.00 | -9.84 | 318.59 | -56.82 | 105.34 | 0.8572 | 442.0 | 321.0 | |
| 0.00 | 0.87 | 0.00 | 0.95 | -10.15 | 314.54 | -60.88 | 104.67 | 0.8908 | -523.0 | -484.2 | |
| 0.00 | 1.66 | 0.00 | 1.81 | -8.59 | 314.06 | -61.35 | 102.85 | 0.8919 | -622.0 | -564.9 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -8.40 | 312.15 | -63.27 | 102.24 | 0.9059 | -294.0 | -281.7 | |
| 0.00 | 0.87 | 0.00 | 1.09 | -9.23 | 310.26 | -65.16 | 102.75 | 0.9201 | -494.0 | -406.3 | |
| 4.46 | 27.10 | 5.56 | 34.26 | -8.92 | 310.30 | -65.12 | 102.43 | 0.9194 | -497.7 | 106.9 | |
| 1.31 | 14.69 | 1.67 | 18.83 | -9.73 | 309.85 | -65.56 | 103.21 | 0.9234 | -298.1 | 58.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
