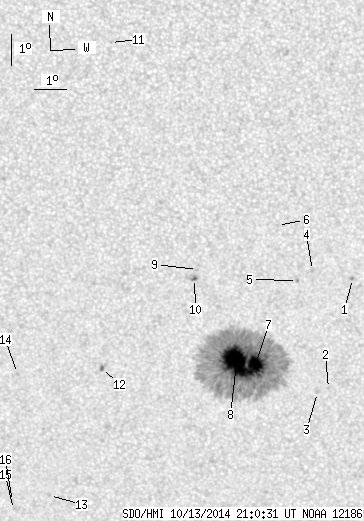

SDO HMI 2014-10-13 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.80 | 496.48 | 38.23 | 276.07 | -20.83 | 17.33 | 2.47 | 185.10 | 0.4549 | 933.9 | 374.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.76 | -18.10 | 20.85 | 5.99 | 193.69 | 0.4211 | 1030.0 | 888.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.75 | 20.21 | 5.35 | 190.56 | 0.4749 | -669.0 | -429.8 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -21.88 | 19.86 | 5.00 | 189.83 | 0.4759 | -719.0 | -677.4 | |
| 0.00 | 1.84 | 0.00 | 1.00 | -17.82 | 19.58 | 4.72 | 191.00 | 0.4125 | 743.0 | 533.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -18.14 | 19.12 | 4.26 | 189.80 | 0.4163 | 963.0 | 779.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -16.35 | 18.45 | 3.59 | 189.00 | 0.3861 | 673.0 | 539.9 | |
| 17.66 | 477.76 | 9.82 | 265.71 | -20.92 | 17.84 | 2.98 | 186.13 | 0.4568 | 1397.2 | 400.3 | |
| 49.48 | -7.00 | 27.49 | -7.00 | -20.85 | 17.23 | 2.37 | 184.89 | 0.4548 | 1451.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -17.76 | 15.97 | 1.10 | 182.61 | 0.4048 | -758.0 | -660.8 | |
| 0.79 | 2.10 | 0.43 | 1.14 | -18.06 | 15.87 | 1.01 | 182.36 | 0.4094 | -958.8 | -844.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -10.52 | 13.29 | -1.57 | 174.59 | 0.2866 | -656.0 | -475.2 | |
| 0.87 | 3.06 | 0.49 | 1.70 | -21.04 | 12.91 | -1.95 | 175.99 | 0.4573 | -919.8 | -747.6 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -25.41 | 11.11 | -3.75 | 173.53 | 0.5261 | -788.0 | -675.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -21.22 | 10.21 | -4.66 | 170.60 | 0.4650 | -702.0 | -636.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -25.91 | 9.90 | -4.96 | 171.61 | 0.5358 | -645.0 | -531.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -25.63 | 9.88 | -4.99 | 171.49 | 0.5317 | -563.0 | -533.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
