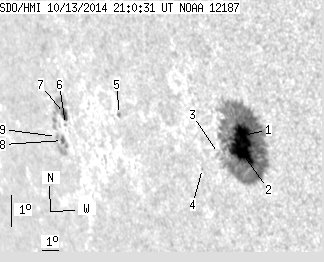

SDO HMI 2014-10-13 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.37 | 334.47 | 54.96 | 309.72 | -8.93 | 319.10 | -55.77 | 104.64 | 0.8440 | 614.4 | 265.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.47 | 288.66 | 19.69 | 253.99 | -8.59 | 321.07 | -53.79 | 104.71 | 0.8270 | 1028.8 | 314.6 | |
| 28.94 | -1.00 | 25.57 | -1.00 | -9.10 | 320.86 | -54.01 | 105.25 | 0.8302 | 842.9 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.44 | -9.27 | 319.60 | -55.26 | 105.10 | 0.8421 | -332.0 | -288.2 | |
| 0.00 | 0.87 | 0.00 | 0.82 | -9.82 | 318.60 | -56.26 | 105.46 | 0.8523 | 380.0 | 359.6 | |
| 0.44 | 1.75 | 0.47 | 1.87 | -8.57 | 314.08 | -60.78 | 102.95 | 0.8875 | -610.4 | -535.2 | |
| 0.00 | 1.05 | 0.00 | 1.29 | -9.23 | 310.28 | -64.58 | 102.87 | 0.9162 | -458.0 | -381.8 | |
| 5.68 | 26.49 | 6.94 | 32.67 | -8.89 | 310.32 | -64.54 | 102.51 | 0.9155 | -495.5 | 91.5 | |
| 1.84 | 12.68 | 2.29 | 15.87 | -9.77 | 309.87 | -64.99 | 103.36 | 0.9197 | -280.8 | 22.1 | |
| 0.00 | 1.40 | 0.00 | 1.77 | -9.68 | 309.46 | -65.40 | 103.19 | 0.9222 | 419.0 | 395.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
