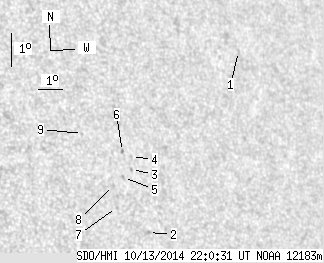

SDO HMI 2014-10-13 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.88 | 0.00 | 6.48 | 13.84 | 55.14 | 40.84 | 284.20 | 0.6570 | 448.6 | 316.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 1.06 | 17.03 | 59.81 | 45.51 | 287.98 | 0.7194 | -402.0 | -445.5 | |
| 0.00 | 2.45 | 0.00 | 1.59 | 11.86 | 54.74 | 40.44 | 281.30 | 0.6496 | 632.0 | 421.4 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 13.79 | 54.44 | 40.13 | 284.32 | 0.6483 | 557.0 | 445.5 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 14.18 | 54.52 | 40.21 | 284.90 | 0.6500 | 592.0 | 473.6 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 13.58 | 54.07 | 39.76 | 284.05 | 0.6432 | 633.0 | 549.7 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 14.36 | 54.19 | 39.88 | 285.24 | 0.6461 | 658.0 | 568.0 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 12.70 | 53.62 | 39.31 | 282.76 | 0.6359 | 101.0 | 110.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 13.36 | 53.63 | 39.32 | 283.80 | 0.6371 | 750.0 | 659.4 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 15.00 | 52.73 | 38.42 | 286.57 | 0.6286 | 516.0 | 434.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
