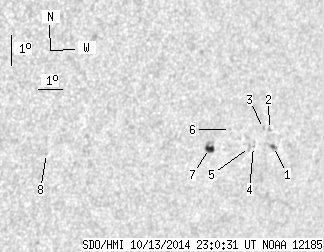

SDO HMI 2014-10-13 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.24 | 19.31 | 3.81 | 14.11 | -15.96 | 56.04 | 42.28 | 241.72 | 0.7364 | -19.7 | 154.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 3.06 | 0.73 | 2.31 | -16.16 | 57.90 | 44.14 | 242.48 | 0.7566 | 701.9 | 583.5 | |
| 0.00 | 1.57 | 0.00 | 1.18 | -15.59 | 57.57 | 43.81 | 243.01 | 0.7507 | 515.0 | 448.9 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -15.54 | 57.30 | 43.54 | 242.94 | 0.7476 | 663.0 | 568.7 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -16.09 | 57.02 | 43.26 | 242.11 | 0.7473 | 571.0 | 484.7 | |
| 0.00 | 2.97 | 0.00 | 2.20 | -16.11 | 56.85 | 43.10 | 242.00 | 0.7457 | 645.0 | 486.1 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -15.46 | 55.88 | 42.12 | 242.29 | 0.7325 | -365.0 | -228.9 | |
| 4.28 | 8.13 | 3.08 | 5.85 | -16.01 | 55.14 | 41.38 | 241.19 | 0.7275 | -701.2 | -489.9 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -15.73 | 48.61 | 34.85 | 237.39 | 0.6553 | -575.0 | -462.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
