SDO HMI 2014-10-14 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.50 | 24.58 | 4.03 | 18.29 | -15.84 | 56.67 | 43.47 | 242.50 | 0.7482 | 100.6 | 220.9 | |
|
previous
or next observation for the same group /

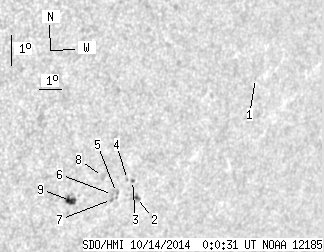

back to the solar disc SDO HMI 2014-10-14 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.57 | -12.76 | 62.44 | 49.24 | 248.84 | 0.7944 | 473.0 | 381.4 | |
| 0.87 | 4.02 | 0.67 | 3.07 | -16.18 | 57.97 | 44.77 | 242.77 | 0.7629 | 713.7 | 564.2 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -15.61 | 57.64 | 44.43 | 243.30 | 0.7570 | 491.0 | 488.1 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -15.56 | 57.40 | 44.20 | 243.24 | 0.7544 | 598.0 | 520.2 | |
| 0.00 | 3.94 | 0.00 | 2.95 | -15.94 | 57.03 | 43.83 | 242.58 | 0.7524 | 412.0 | 417.3 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -15.99 | 56.87 | 43.67 | 242.44 | 0.7510 | 430.0 | 379.0 | |
| 0.00 | 1.75 | 0.00 | 1.31 | -16.16 | 56.87 | 43.67 | 242.24 | 0.7518 | 553.0 | 514.7 | |
| 0.00 | 2.89 | 0.00 | 2.13 | -15.37 | 56.28 | 43.07 | 242.90 | 0.7420 | -62.0 | -64.4 | |
| 4.63 | 8.22 | 3.36 | 5.96 | -16.05 | 55.10 | 41.90 | 241.43 | 0.7331 | -673.7 | -482.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
