SDO HMI 2014-10-14 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.20 | 21.25 | 4.60 | 15.89 | -16.07 | 56.33 | 43.67 | 242.33 | 0.7513 | 87.0 | 136.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

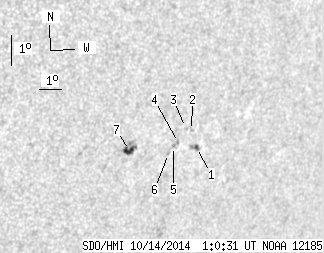

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 4.90 | 0.95 | 3.77 | -16.20 | 58.05 | 45.40 | 243.05 | 0.7693 | 696.4 | 603.4 | |
| 0.00 | 1.31 | 0.00 | 1.00 | -15.62 | 57.66 | 45.01 | 243.56 | 0.7629 | 569.0 | 486.9 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -15.50 | 57.37 | 44.71 | 243.56 | 0.7594 | 214.0 | 266.8 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -15.97 | 57.19 | 44.54 | 242.91 | 0.7597 | 634.0 | 569.6 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -16.08 | 57.00 | 44.35 | 242.68 | 0.7583 | 708.0 | 583.9 | |
| 0.00 | 1.22 | 0.00 | 0.93 | -16.30 | 56.85 | 44.19 | 242.34 | 0.7577 | 491.0 | 354.8 | |
| 4.98 | 11.11 | 3.65 | 8.13 | -16.07 | 55.11 | 42.45 | 241.71 | 0.7389 | -669.3 | -464.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
