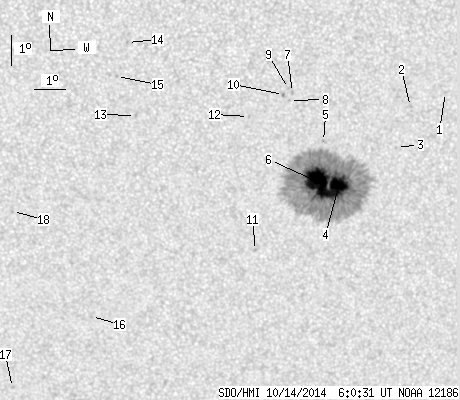

SDO HMI 2014-10-14 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.19 | 474.38 | 41.56 | 265.93 | -20.91 | 17.25 | 7.33 | 194.83 | 0.4685 | 917.0 | 346.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.39 | -17.98 | 21.06 | 11.14 | 204.49 | 0.4453 | 746.0 | 597.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -18.41 | 19.96 | 10.05 | 201.95 | 0.4448 | 753.0 | 669.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -19.76 | 19.59 | 9.68 | 200.11 | 0.4622 | 730.0 | 589.6 | |
| 26.16 | 457.00 | 14.68 | 256.23 | -21.03 | 17.79 | 7.88 | 195.79 | 0.4722 | 1305.3 | 371.2 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -19.52 | 17.23 | 7.32 | 195.64 | 0.4474 | 905.0 | 696.8 | |
| 48.03 | -4.00 | 26.88 | -4.00 | -20.88 | 17.14 | 7.22 | 194.62 | 0.4674 | 1406.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -17.89 | 16.18 | 6.27 | 194.45 | 0.4184 | -805.0 | -655.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.15 | 16.10 | 6.19 | 194.10 | 0.4220 | -749.0 | -539.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.76 | 16.05 | 6.14 | 194.24 | 0.4158 | -984.0 | -670.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -17.95 | 15.90 | 5.99 | 193.79 | 0.4182 | -868.0 | -749.9 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -23.16 | 15.19 | 5.28 | 189.87 | 0.4953 | 796.0 | 517.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.66 | 14.82 | 4.90 | 191.02 | 0.4255 | -471.0 | -463.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -18.60 | 11.24 | 1.33 | 183.03 | 0.4177 | -793.0 | -639.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -16.22 | 10.98 | 1.07 | 182.71 | 0.3792 | -907.0 | -786.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.32 | 10.64 | 0.73 | 181.75 | 0.3968 | -771.0 | -650.1 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -25.42 | 9.84 | -0.07 | 179.88 | 0.5224 | -361.0 | -366.5 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -27.95 | 7.16 | -2.75 | 175.65 | 0.5612 | -695.0 | -559.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -21.80 | 7.30 | -2.61 | 174.81 | 0.4692 | -715.0 | -587.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
