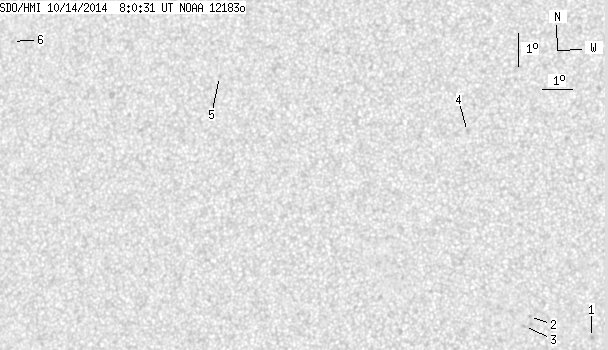

SDO HMI 2014-10-14 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.48 | 0.00 | 4.45 | 18.38 | 356.07 | -12.75 | 41.52 | 0.3037 | -327.7 | -314.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.92 | 0.00 | 0.97 | 14.31 | 2.21 | -6.61 | 37.27 | 0.1850 | -862.0 | -643.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 14.93 | 0.26 | -8.56 | 42.40 | 0.2143 | -999.0 | -848.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.62 | 0.11 | -8.71 | 43.88 | 0.2123 | -871.0 | -749.7 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 20.55 | 357.98 | -10.84 | 34.72 | 0.3106 | -710.0 | -489.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 22.05 | 349.57 | -19.25 | 47.19 | 0.4183 | 790.0 | 619.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 22.87 | 342.14 | -26.68 | 53.91 | 0.5140 | 686.0 | 513.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
