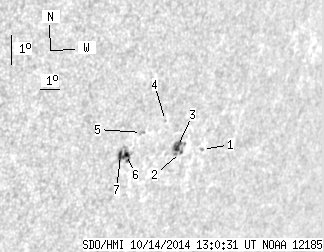

SDO HMI 2014-10-14 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.01 | 29.71 | 7.66 | 25.27 | -16.14 | 56.29 | 50.21 | 245.27 | 0.8146 | 86.3 | -38.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.18 | -16.36 | 58.83 | 52.75 | 246.00 | 0.8382 | 373.0 | 375.8 | |
| 0.44 | 12.67 | 0.38 | 11.08 | -16.36 | 57.71 | 51.63 | 245.58 | 0.8283 | 480.8 | 500.1 | |
| 4.46 | -2.00 | 3.89 | -2.00 | -16.15 | 57.48 | 51.40 | 245.74 | 0.8256 | 745.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -15.24 | 56.57 | 50.49 | 246.43 | 0.8143 | -259.0 | -299.1 | |
| 0.00 | 2.01 | 0.00 | 1.67 | -15.54 | 55.50 | 49.42 | 245.66 | 0.8054 | -599.0 | -464.7 | |
| 1.92 | 13.02 | 1.59 | 10.75 | -16.20 | 55.00 | 48.92 | 244.68 | 0.8030 | -546.9 | -484.4 | |
| 2.19 | -6.00 | 1.80 | -6.00 | -16.21 | 54.72 | 48.64 | 244.55 | 0.8004 | -668.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
