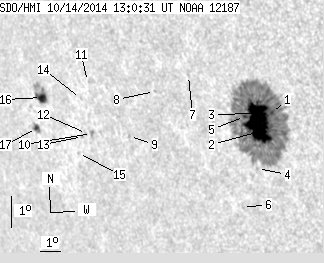

SDO HMI 2014-10-14 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.91 | 382.01 | 55.19 | 285.27 | -8.95 | 319.89 | -46.19 | 107.58 | 0.7489 | 505.8 | 240.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 345.81 | 0.82 | 252.90 | -8.55 | 321.56 | -44.53 | 107.64 | 0.7300 | 1120.7 | 294.3 | |
| 30.77 | -1.00 | 22.54 | -1.00 | -9.18 | 320.94 | -45.14 | 108.22 | 0.7390 | 858.9 | 999999 | |
| 29.72 | -1.00 | 21.71 | -1.00 | -8.62 | 320.95 | -45.14 | 107.50 | 0.7371 | 947.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -10.34 | 320.65 | -45.43 | 109.61 | 0.7463 | -144.0 | -107.6 | |
| 1.49 | -1.00 | 1.10 | -1.00 | -8.76 | 320.36 | -45.72 | 107.46 | 0.7441 | 228.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -11.63 | 319.73 | -46.35 | 110.86 | 0.7608 | 207.0 | 179.2 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -7.68 | 318.05 | -48.04 | 105.26 | 0.7662 | 168.0 | 214.0 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -8.30 | 316.37 | -49.71 | 105.51 | 0.7856 | 377.0 | 411.6 | |
| 0.00 | 1.05 | 0.00 | 0.87 | -9.81 | 314.88 | -51.20 | 106.88 | 0.8048 | -609.0 | -561.2 | |
| 0.00 | 2.53 | 0.00 | 2.20 | -9.87 | 312.98 | -53.11 | 106.37 | 0.8234 | -717.0 | -617.2 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -8.26 | 313.12 | -52.96 | 104.50 | 0.8181 | -522.0 | -550.6 | |
| 0.00 | 1.14 | 0.00 | 0.99 | -9.89 | 312.72 | -53.37 | 106.32 | 0.8259 | -476.0 | -469.6 | |
| 0.00 | 1.14 | 0.00 | 1.00 | -10.00 | 312.48 | -53.60 | 106.38 | 0.8283 | -403.0 | -367.0 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -8.82 | 312.65 | -53.43 | 105.03 | 0.8239 | -396.0 | -323.0 | |
| 0.00 | 1.05 | 0.00 | 0.93 | -10.56 | 312.14 | -53.95 | 106.93 | 0.8329 | -413.0 | -332.8 | |
| 6.99 | 18.71 | 6.41 | 17.16 | -8.96 | 310.57 | -55.51 | 104.64 | 0.8436 | -574.8 | -202.2 | |
| 2.80 | 5.86 | 2.61 | 5.48 | -9.97 | 310.05 | -56.03 | 105.65 | 0.8503 | -386.7 | -159.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
