SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 19.76 | 1.33 | 10.57 | 18.50 | 349.98 | -15.55 | 40.65 | 0.3424 | -45.0 | 16.1 | |
|
previous
or next observation for the same group /

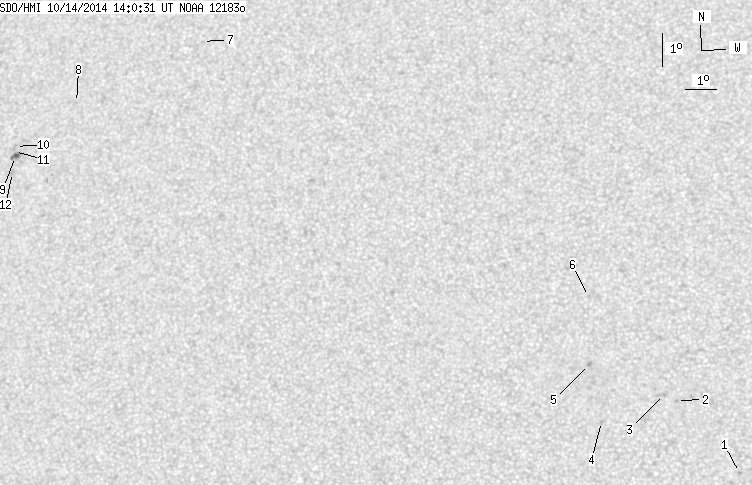

back to the solar disc SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.70 | 12.06 | 4.66 | -0.88 | 7.94 | 0.1087 | -955.0 | -687.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 14.23 | 2.71 | -2.82 | 18.26 | 0.1532 | -975.0 | -764.9 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.41 | 2.30 | -3.23 | 20.24 | 0.1584 | -826.0 | -755.9 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 13.58 | 0.40 | -5.13 | 32.99 | 0.1603 | -930.0 | -706.5 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 15.30 | 359.99 | -5.54 | 29.65 | 0.1891 | -842.0 | -640.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.37 | 359.90 | -5.63 | 25.18 | 0.2210 | -733.0 | -534.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 25.02 | 346.54 | -18.99 | 41.57 | 0.4463 | 710.0 | 505.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 22.96 | 342.47 | -23.06 | 50.18 | 0.4716 | 665.0 | 527.9 | |
| 2.36 | 4.37 | 1.33 | 2.46 | 21.20 | 340.63 | -24.90 | 55.22 | 0.4799 | 1050.6 | 894.9 | |
| 0.00 | 1.49 | 0.00 | 0.84 | 21.51 | 340.57 | -24.96 | 54.71 | 0.4829 | 520.0 | 639.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 21.35 | 340.57 | -24.97 | 55.00 | 0.4818 | 584.0 | 656.5 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 20.70 | 340.61 | -24.92 | 56.16 | 0.4765 | 830.0 | 698.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
