SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 33.48 | 2.38 | 28.97 | -16.20 | 56.54 | 51.01 | 245.51 | 0.8221 | 104.5 | 100.2 | |
|
previous
or next observation for the same group /

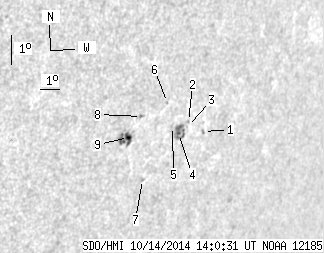

back to the solar disc SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 1.60 | -16.34 | 58.85 | 53.31 | 246.23 | 0.8430 | 405.0 | 363.2 | |
| 0.00 | 1.05 | 0.00 | 0.94 | -15.94 | 57.92 | 52.38 | 246.35 | 0.8337 | 610.0 | 504.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -16.10 | 57.92 | 52.39 | 246.17 | 0.8342 | 482.0 | 444.7 | |
| 0.70 | 12.76 | 0.62 | 11.32 | -16.29 | 57.54 | 52.00 | 245.80 | 0.8314 | 776.8 | 582.0 | |
| 0.00 | 1.84 | 0.00 | 1.61 | -16.03 | 57.14 | 51.60 | 245.95 | 0.8271 | 448.0 | 322.8 | |
| 0.00 | 0.87 | 0.00 | 0.75 | -15.22 | 56.60 | 51.07 | 246.68 | 0.8196 | -262.0 | -195.2 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -17.66 | 56.25 | 50.71 | 243.74 | 0.8246 | 317.0 | 354.2 | |
| 0.00 | 1.75 | 0.00 | 1.47 | -15.57 | 55.45 | 49.91 | 245.82 | 0.8101 | -677.0 | -487.2 | |
| 2.10 | 12.50 | 1.76 | 10.44 | -16.21 | 55.03 | 49.50 | 244.91 | 0.8085 | -468.5 | -528.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
