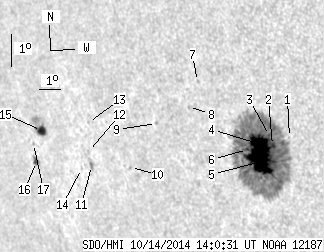

SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.18 | 386.74 | 52.26 | 284.89 | -8.88 | 320.10 | -45.44 | 107.78 | 0.7405 | 608.7 | 256.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.49 | -8.27 | 322.28 | -43.26 | 107.76 | 0.7144 | 587.0 | 520.1 | |
| 2.71 | 355.72 | 1.94 | 257.54 | -8.57 | 321.52 | -44.01 | 107.86 | 0.7242 | 1159.0 | 299.8 | |
| 0.26 | -2.00 | 0.19 | -2.00 | -8.27 | 321.44 | -44.10 | 107.43 | 0.7241 | 1053.7 | 999999 | |
| 23.95 | -2.00 | 17.30 | -2.00 | -8.57 | 321.01 | -44.52 | 107.67 | 0.7300 | 1020.8 | 999999 | |
| 34.52 | -2.00 | 25.05 | -2.00 | -9.10 | 320.93 | -44.61 | 108.34 | 0.7328 | 885.6 | 999999 | |
| 0.87 | -2.00 | 0.64 | -2.00 | -8.77 | 320.42 | -45.11 | 107.70 | 0.7373 | 370.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -6.83 | 318.52 | -47.01 | 104.51 | 0.7526 | 507.0 | 401.0 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -7.63 | 318.01 | -47.53 | 105.38 | 0.7605 | 320.0 | 273.1 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -8.28 | 316.44 | -49.09 | 105.68 | 0.7790 | 518.0 | 435.5 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -9.75 | 314.93 | -50.60 | 107.01 | 0.7986 | -514.0 | -520.0 | |
| 0.00 | 2.71 | 0.00 | 2.32 | -9.85 | 313.00 | -52.54 | 106.52 | 0.8179 | -745.0 | -613.0 | |
| 0.00 | 1.40 | 0.00 | 1.20 | -9.42 | 312.94 | -52.59 | 105.99 | 0.8173 | -353.0 | -262.3 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -8.51 | 313.13 | -52.40 | 104.96 | 0.8133 | -480.0 | -483.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -9.99 | 312.46 | -53.07 | 106.52 | 0.8234 | -408.0 | -360.3 | |
| 5.77 | 16.43 | 5.21 | 14.86 | -8.97 | 310.62 | -54.91 | 104.80 | 0.8381 | -660.2 | -198.3 | |
| 2.10 | 4.54 | 1.93 | 4.19 | -9.97 | 310.11 | -55.42 | 105.82 | 0.8450 | -454.1 | -324.5 | |
| 0.00 | 0.96 | 0.00 | 0.88 | -9.42 | 310.09 | -55.44 | 105.18 | 0.8440 | -195.0 | -146.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
