SDO HMI 2014-10-14 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 17.92 | 2.65 | 9.70 | 18.25 | 345.90 | -19.08 | 50.76 | 0.3859 | -19.3 | -28.8 | |
|
previous
or next observation for the same group /

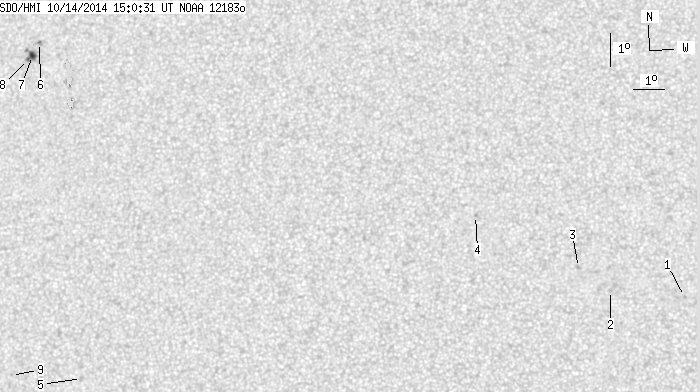

back to the solar disc SDO HMI 2014-10-14 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.41 | 2.34 | -2.64 | 16.81 | 0.1552 | -915.0 | -758.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 14.58 | 0.05 | -4.94 | 28.87 | 0.1733 | -897.0 | -683.5 | |
| 0.00 | 2.01 | 0.00 | 1.01 | 15.26 | 359.04 | -5.95 | 31.50 | 0.1921 | -834.0 | -591.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 16.80 | 355.75 | -9.24 | 38.92 | 0.2457 | -900.0 | -702.8 | |
| 0.00 | 2.01 | 0.00 | 1.07 | 11.56 | 343.47 | -21.52 | 73.64 | 0.3761 | -664.0 | -536.3 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 21.72 | 340.76 | -24.22 | 53.61 | 0.4754 | 713.0 | 629.3 | |
| 3.85 | 8.74 | 2.16 | 4.91 | 21.31 | 340.59 | -24.39 | 54.53 | 0.4744 | 1074.1 | 801.3 | |
| 0.87 | -7.00 | 0.49 | -7.00 | 21.18 | 340.47 | -24.51 | 54.89 | 0.4749 | 1047.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 11.57 | 341.15 | -23.83 | 74.86 | 0.4119 | -590.0 | -438.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
