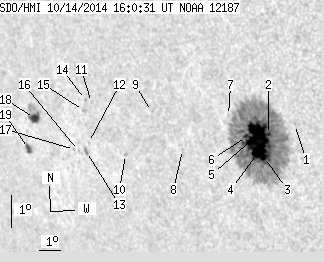

SDO HMI 2014-10-14 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.51 | 399.40 | 51.89 | 288.83 | -8.92 | 319.97 | -44.46 | 108.21 | 0.7297 | 546.3 | 271.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.60 | -8.26 | 322.54 | -41.89 | 108.32 | 0.6984 | -332.0 | -216.0 | |
| 1.83 | 363.50 | 1.29 | 258.14 | -8.65 | 321.42 | -43.01 | 108.38 | 0.7130 | 1305.8 | 329.1 | |
| 3.15 | -2.00 | 2.23 | -2.00 | -9.38 | 321.14 | -43.29 | 109.24 | 0.7189 | 995.1 | 999999 | |
| 18.00 | -2.00 | 12.81 | -2.00 | -9.18 | 320.96 | -43.47 | 108.89 | 0.7202 | 1038.6 | 999999 | |
| 35.21 | -2.00 | 25.01 | -2.00 | -8.72 | 320.91 | -43.52 | 108.26 | 0.7191 | 1038.3 | 999999 | |
| 2.01 | -2.00 | 1.44 | -2.00 | -8.78 | 320.48 | -43.95 | 108.17 | 0.7243 | 537.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -8.18 | 319.80 | -44.63 | 107.12 | 0.7299 | 219.0 | 192.3 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -9.40 | 317.61 | -46.83 | 107.86 | 0.7583 | 476.0 | 398.1 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -8.32 | 316.40 | -48.03 | 106.08 | 0.7680 | 585.0 | 409.5 | |
| 0.00 | 1.22 | 0.00 | 0.98 | -9.76 | 314.93 | -49.50 | 107.38 | 0.7875 | -709.0 | -618.6 | |
| 0.00 | 1.14 | 0.00 | 0.93 | -8.26 | 313.61 | -50.83 | 105.12 | 0.7970 | -448.0 | -317.5 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -9.53 | 313.21 | -51.22 | 106.53 | 0.8042 | -637.0 | -544.0 | |
| 0.00 | 2.62 | 0.00 | 2.19 | -9.82 | 313.05 | -51.38 | 106.83 | 0.8066 | -713.0 | -639.8 | |
| 0.00 | 1.05 | 0.00 | 0.86 | -8.19 | 313.33 | -51.10 | 104.96 | 0.7996 | -549.0 | -471.2 | |
| 0.00 | 1.40 | 0.00 | 1.15 | -8.54 | 313.17 | -51.26 | 105.33 | 0.8021 | -511.0 | -422.1 | |
| 0.00 | 0.87 | 0.00 | 0.73 | -9.82 | 312.66 | -51.77 | 106.71 | 0.8104 | -569.0 | -462.9 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -9.80 | 312.46 | -51.97 | 106.63 | 0.8123 | -426.0 | -385.2 | |
| 6.99 | 17.91 | 6.14 | 15.73 | -9.00 | 310.62 | -53.81 | 105.14 | 0.8280 | -654.4 | -264.9 | |
| 3.32 | 5.42 | 2.97 | 4.85 | -9.97 | 310.08 | -54.35 | 106.13 | 0.8353 | -477.4 | -243.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
