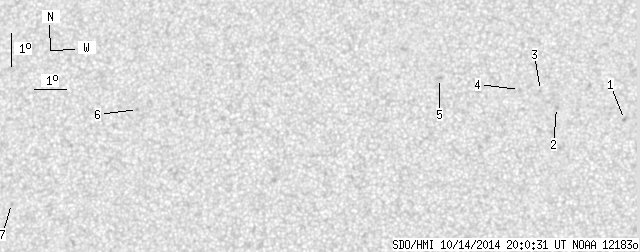

SDO HMI 2014-10-14 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.96 | 0.00 | 5.06 | 14.57 | 355.83 | -6.39 | 300.63 | 0.2065 | -879.0 | -692.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.88 | 14.38 | 2.33 | 0.11 | 359.29 | 0.1479 | -1102.0 | -768.5 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 14.74 | 0.23 | -1.99 | 12.36 | 0.1579 | -1040.0 | -780.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 15.25 | 359.73 | -2.49 | 14.49 | 0.1685 | -778.0 | -598.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.28 | 359.08 | -3.14 | 17.99 | 0.1721 | -727.0 | -527.5 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 15.60 | 356.58 | -5.64 | 29.29 | 0.1943 | -907.0 | -774.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.50 | 347.13 | -15.10 | 58.80 | 0.2961 | -876.0 | -662.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.56 | 343.28 | -18.94 | 71.92 | 0.3360 | -723.0 | -571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
