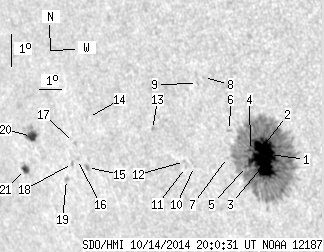

SDO HMI 2014-10-14 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.61 | 426.89 | 52.73 | 296.64 | -8.90 | 320.12 | -42.10 | 109.15 | 0.7026 | 649.7 | 311.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.91 | 392.11 | 6.08 | 268.75 | -8.76 | 321.16 | -41.06 | 109.37 | 0.6905 | 1381.0 | 355.3 | |
| 19.31 | -1.00 | 13.21 | -1.00 | -8.50 | 320.95 | -41.27 | 108.92 | 0.6919 | 1151.9 | 999999 | |
| 34.51 | -1.00 | 23.72 | -1.00 | -9.09 | 320.87 | -41.35 | 109.69 | 0.6952 | 1042.6 | 999999 | |
| 1.31 | -1.00 | 0.90 | -1.00 | -8.69 | 320.40 | -41.82 | 108.94 | 0.6992 | 462.8 | 999999 | |
| 0.26 | -1.00 | 0.18 | -1.00 | -9.20 | 320.16 | -42.06 | 109.53 | 0.7040 | 353.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.16 | -8.13 | 319.62 | -42.60 | 107.85 | 0.7063 | 587.0 | 418.3 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -8.98 | 319.42 | -42.81 | 108.90 | 0.7118 | -163.0 | -147.7 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -6.57 | 318.73 | -43.49 | 105.38 | 0.7114 | 671.0 | 594.4 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -6.77 | 318.46 | -43.76 | 105.55 | 0.7153 | 485.0 | 424.6 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -9.36 | 317.97 | -44.25 | 108.81 | 0.7297 | 608.0 | 462.6 | |
| 0.00 | 0.96 | 0.00 | 0.70 | -9.42 | 317.58 | -44.64 | 108.73 | 0.7343 | 371.0 | 301.1 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -9.23 | 317.57 | -44.66 | 108.49 | 0.7338 | 424.0 | 338.5 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -8.34 | 316.33 | -45.89 | 106.85 | 0.7447 | 495.0 | 440.9 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -8.19 | 313.49 | -48.74 | 105.69 | 0.7751 | -195.0 | -267.6 | |
| 0.00 | 2.36 | 0.00 | 1.87 | -9.76 | 313.15 | -49.07 | 107.52 | 0.7831 | -766.0 | -670.6 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -9.54 | 312.73 | -49.50 | 107.11 | 0.7868 | -530.0 | -397.0 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -9.03 | 312.64 | -49.58 | 106.45 | 0.7863 | -501.0 | -518.5 | |
| 0.00 | 1.49 | 0.00 | 1.19 | -9.69 | 312.46 | -49.76 | 107.20 | 0.7900 | -474.0 | -458.2 | |
| 0.00 | 2.01 | 0.00 | 1.63 | -10.21 | 312.07 | -50.16 | 107.71 | 0.7955 | -467.0 | -395.3 | |
| 6.73 | 13.02 | 5.60 | 10.85 | -9.00 | 310.63 | -51.59 | 105.79 | 0.8065 | -710.5 | -366.7 | |
| 3.58 | 6.03 | 3.04 | 5.12 | -10.07 | 310.10 | -52.12 | 106.90 | 0.8144 | -571.5 | -317.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
