SDO HMI 2014-10-14 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.42 | 484.29 | 40.69 | 279.84 | -21.03 | 17.14 | 15.47 | 208.97 | 0.5161 | 942.7 | 364.6 | |
|
previous
or next observation for the same group /

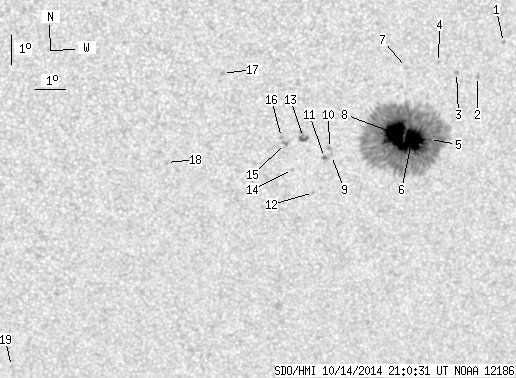

back to the solar disc SDO HMI 2014-10-14 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.75 | -18.01 | 20.27 | 18.60 | 217.14 | 0.5043 | 777.0 | 592.2 | |
| 0.00 | 1.92 | 0.00 | 1.11 | -19.10 | 19.52 | 17.85 | 214.72 | 0.5107 | 662.0 | 586.3 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -18.94 | 18.81 | 17.14 | 213.82 | 0.5028 | 930.0 | 693.7 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -18.59 | 18.18 | 16.51 | 213.25 | 0.4932 | -571.0 | -430.2 | |
| 0.26 | 457.22 | 0.15 | 264.40 | -21.15 | 18.15 | 16.48 | 210.40 | 0.5249 | 728.3 | 376.8 | |
| 34.60 | -5.00 | 20.05 | -5.00 | -21.20 | 17.56 | 15.89 | 209.45 | 0.5211 | 1208.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -18.73 | 17.14 | 15.47 | 211.43 | 0.4864 | 695.0 | 602.8 | |
| 35.12 | -5.00 | 20.24 | -5.00 | -20.91 | 16.96 | 15.29 | 208.82 | 0.5131 | 1418.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -21.59 | 14.94 | 13.27 | 204.93 | 0.5085 | 616.0 | 511.3 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -21.35 | 14.85 | 13.18 | 205.00 | 0.5047 | 1020.0 | 762.0 | |
| 0.44 | 2.27 | 0.25 | 1.30 | -21.65 | 14.72 | 13.05 | 204.50 | 0.5079 | 694.6 | 483.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -22.83 | 14.46 | 12.79 | 203.09 | 0.5223 | -628.0 | -473.3 | |
| 0.00 | 6.64 | 0.00 | 3.78 | -20.96 | 13.96 | 12.29 | 203.85 | 0.4938 | 735.0 | 754.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -22.03 | 13.69 | 12.02 | 202.48 | 0.5069 | -759.0 | -561.5 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -21.15 | 13.39 | 11.72 | 202.70 | 0.4929 | -883.0 | -766.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -20.94 | 13.24 | 11.57 | 202.61 | 0.4892 | -770.0 | -546.6 | |
| 0.00 | 1.92 | 0.00 | 1.06 | -18.78 | 11.19 | 9.52 | 200.61 | 0.4466 | -819.0 | -653.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -21.71 | 9.55 | 7.88 | 195.39 | 0.4819 | -657.0 | -536.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -28.80 | 4.70 | 3.03 | 184.65 | 0.5733 | -610.0 | -547.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
