SDO HMI 2014-10-14 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.64 | 0.00 | 5.89 | 14.85 | 356.27 | -4.85 | 309.43 | 0.1966 | -870.9 | -708.1 | |
|
previous
or next observation for the same group /

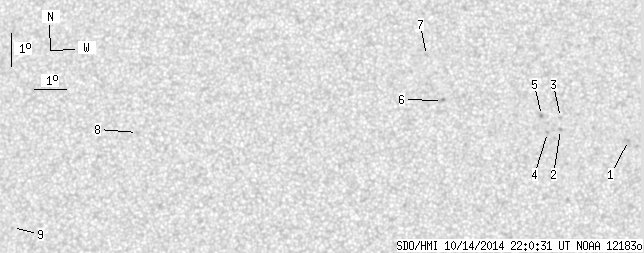

back to the solar disc SDO HMI 2014-10-14 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.41 | 2.40 | 1.28 | 351.68 | 0.1501 | -957.0 | -745.0 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 14.74 | 0.30 | -0.82 | 5.15 | 0.1549 | -1120.0 | -847.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 15.10 | 0.30 | -0.82 | 4.95 | 0.1612 | -778.0 | -642.8 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 14.65 | 359.90 | -1.22 | 7.73 | 0.1541 | -966.0 | -758.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 15.16 | 359.71 | -1.41 | 8.39 | 0.1634 | -918.0 | -833.8 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 15.61 | 356.63 | -4.49 | 24.06 | 0.1857 | -938.0 | -789.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 16.97 | 356.10 | -5.02 | 23.52 | 0.2106 | -736.0 | -589.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.50 | 347.10 | -14.02 | 56.99 | 0.2809 | -623.0 | -499.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 11.53 | 343.30 | -17.81 | 71.06 | 0.3183 | -802.0 | -611.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
