SDO HMI 2014-10-14 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.23 | 466.74 | 41.38 | 271.23 | -21.07 | 17.02 | 16.46 | 210.45 | 0.5241 | 783.5 | 351.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-14 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

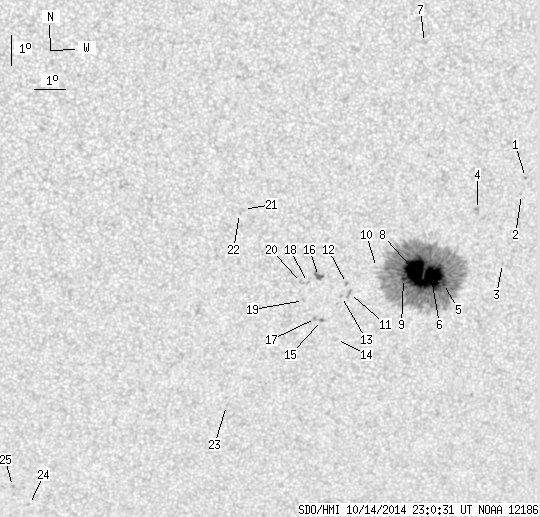

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.55 | -17.96 | 20.32 | 19.76 | 218.88 | 0.5144 | 637.0 | 576.3 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -18.52 | 20.26 | 19.69 | 218.08 | 0.5201 | 608.0 | 472.0 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -20.79 | 19.90 | 19.34 | 214.90 | 0.5432 | -603.0 | -564.9 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -18.96 | 18.84 | 18.27 | 215.51 | 0.5125 | 972.0 | 615.4 | |
| 2.27 | 435.80 | 1.33 | 253.45 | -21.39 | 17.98 | 17.42 | 211.54 | 0.5350 | 767.3 | 384.7 | |
| 30.59 | -5.00 | 17.83 | -5.00 | -21.17 | 17.55 | 16.99 | 211.14 | 0.5290 | 1187.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -13.50 | 16.62 | 16.05 | 219.32 | 0.4261 | -469.0 | -418.7 | |
| 34.96 | -5.00 | 20.26 | -5.00 | -20.92 | 16.96 | 16.39 | 210.51 | 0.5213 | 1385.7 | 999999 | |
| 1.49 | -5.00 | 0.86 | -5.00 | -21.17 | 16.62 | 16.05 | 209.73 | 0.5220 | 971.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.78 | 15.68 | 15.11 | 208.67 | 0.5101 | 285.0 | 267.8 | |
| 0.00 | 3.06 | 0.00 | 1.77 | -21.63 | 14.87 | 14.30 | 206.57 | 0.5156 | 722.0 | 526.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -21.29 | 14.74 | 14.17 | 206.67 | 0.5102 | 858.0 | 721.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.72 | 14.61 | 14.05 | 206.07 | 0.5151 | 560.0 | 360.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.18 | 14.60 | 14.03 | 204.75 | 0.5343 | -482.0 | -480.1 | |
| 0.00 | 1.66 | 0.00 | 0.96 | -22.52 | 14.03 | 13.46 | 204.43 | 0.5220 | -827.0 | -689.9 | |
| 1.92 | 5.51 | 1.10 | 3.14 | -21.03 | 13.79 | 13.22 | 205.36 | 0.5004 | 842.7 | 714.5 | |
| 0.00 | 1.66 | 0.00 | 0.96 | -22.44 | 13.82 | 13.25 | 204.16 | 0.5197 | -799.0 | -661.6 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -21.22 | 13.44 | 12.88 | 204.61 | 0.5008 | -358.0 | -306.6 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -21.82 | 13.36 | 12.80 | 203.95 | 0.5086 | -778.0 | -622.0 | |
| 0.00 | 2.62 | 0.00 | 1.50 | -21.21 | 13.24 | 12.68 | 204.28 | 0.4995 | -747.0 | -615.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.74 | 11.18 | 10.61 | 202.77 | 0.4523 | -781.0 | -696.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.87 | 11.06 | 10.49 | 202.43 | 0.4534 | -830.0 | -724.2 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -25.38 | 11.11 | 10.55 | 197.72 | 0.5456 | -549.0 | -439.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -28.81 | 4.66 | 4.09 | 186.27 | 0.5749 | -541.0 | -422.4 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -28.15 | 4.06 | 3.49 | 185.48 | 0.5646 | -814.0 | -681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
