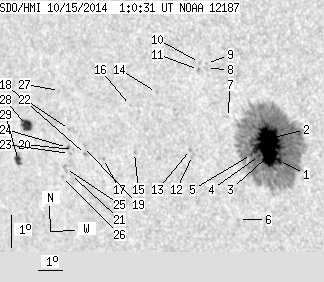

SDO HMI 2014-10-15 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.16 | 450.30 | 49.90 | 300.36 | -8.94 | 320.04 | -39.42 | 110.43 | 0.6710 | 500.5 | 354.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-15 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 405.92 | 2.07 | 267.04 | -9.32 | 321.23 | -38.23 | 111.52 | 0.6587 | 1105.2 | 405.9 | |
| 33.04 | -1.00 | 21.72 | -1.00 | -8.66 | 320.93 | -38.53 | 110.42 | 0.6595 | 1224.6 | 999999 | |
| 22.38 | -1.00 | 14.76 | -1.00 | -9.19 | 320.86 | -38.60 | 111.14 | 0.6627 | 1119.1 | 999999 | |
| 0.26 | -1.00 | 0.17 | -1.00 | -9.22 | 320.51 | -38.96 | 111.00 | 0.6671 | 518.7 | 999999 | |
| 0.87 | -1.00 | 0.58 | -1.00 | -9.21 | 320.20 | -39.27 | 110.83 | 0.6708 | 367.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -11.28 | 319.36 | -40.10 | 113.27 | 0.6899 | 458.0 | 370.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -8.12 | 319.39 | -40.07 | 108.91 | 0.6760 | 410.0 | 318.1 | |
| 0.00 | 1.57 | 0.00 | 1.06 | -6.66 | 318.72 | -40.74 | 106.56 | 0.6786 | 499.0 | 443.9 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -6.51 | 318.74 | -40.73 | 106.34 | 0.6779 | 594.0 | 606.7 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -6.50 | 318.46 | -41.01 | 106.22 | 0.6813 | 494.0 | 441.6 | |
| 0.00 | 1.40 | 0.00 | 0.95 | -6.72 | 318.39 | -41.07 | 106.50 | 0.6828 | 600.0 | 509.4 | |
| 0.00 | 2.53 | 0.00 | 1.75 | -9.40 | 317.81 | -41.65 | 109.96 | 0.6999 | 583.0 | 430.9 | |
| 0.00 | 1.49 | 0.00 | 1.03 | -9.22 | 317.76 | -41.71 | 109.69 | 0.6999 | 283.0 | 280.1 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -7.55 | 316.59 | -42.87 | 106.93 | 0.7074 | 646.0 | 541.9 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -9.48 | 315.39 | -44.07 | 109.03 | 0.7281 | -740.0 | -599.7 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -8.03 | 315.44 | -44.02 | 107.13 | 0.7224 | -517.0 | -473.7 | |
| 0.00 | 1.22 | 0.00 | 0.90 | -9.76 | 314.01 | -45.45 | 108.85 | 0.7444 | -686.0 | -587.4 | |
| 0.00 | 1.49 | 0.00 | 1.11 | -9.70 | 313.24 | -46.23 | 108.46 | 0.7527 | -768.0 | -681.8 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -9.46 | 313.19 | -46.27 | 108.14 | 0.7524 | -752.0 | -772.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -9.58 | 312.73 | -46.74 | 108.12 | 0.7578 | -583.0 | -631.3 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -10.38 | 312.44 | -47.02 | 109.02 | 0.7635 | -484.0 | -357.9 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -8.97 | 312.66 | -46.81 | 107.32 | 0.7566 | -498.0 | -432.2 | |
| 0.00 | 1.22 | 0.00 | 0.93 | -9.72 | 312.52 | -46.94 | 108.23 | 0.7605 | -549.0 | -461.1 | |
| 0.52 | 1.92 | 0.40 | 1.46 | -9.54 | 312.47 | -47.00 | 107.98 | 0.7605 | -642.5 | -520.8 | |
| 0.00 | 3.15 | 0.00 | 2.41 | -10.21 | 312.25 | -47.21 | 108.73 | 0.7650 | -340.0 | -467.8 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -10.47 | 312.06 | -47.40 | 108.99 | 0.7678 | -438.0 | -355.7 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -7.79 | 312.40 | -47.06 | 105.72 | 0.7558 | -349.0 | -334.1 | |
| 8.83 | 11.45 | 6.92 | 8.98 | -9.00 | 310.71 | -48.76 | 106.68 | 0.7776 | -686.7 | -395.8 | |
| 4.11 | 6.64 | 3.28 | 5.31 | -10.13 | 310.11 | -49.35 | 107.87 | 0.7870 | -592.9 | -405.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
