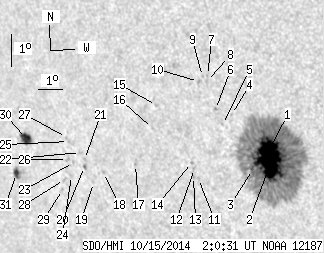

SDO HMI 2014-10-15 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.26 | 463.38 | 50.74 | 306.74 | -8.92 | 319.99 | -38.92 | 110.65 | 0.6648 | 501.0 | 339.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-15 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.96 | 415.14 | 16.93 | 271.04 | -8.57 | 320.93 | -37.98 | 110.56 | 0.6523 | 1218.4 | 395.9 | |
| 36.45 | -1.00 | 23.85 | -1.00 | -9.10 | 320.86 | -38.05 | 111.29 | 0.6555 | 1119.2 | 999999 | |
| 0.26 | -1.00 | 0.17 | -1.00 | -9.27 | 320.18 | -38.73 | 111.17 | 0.6645 | 329.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -7.61 | 319.57 | -39.35 | 108.52 | 0.6651 | 402.0 | 352.2 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -7.95 | 319.17 | -39.74 | 108.81 | 0.6712 | 149.0 | 184.6 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -7.50 | 318.95 | -39.96 | 108.08 | 0.6722 | -632.0 | -527.0 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -6.47 | 318.74 | -40.17 | 106.52 | 0.6709 | 523.0 | 546.0 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -6.66 | 318.68 | -40.23 | 106.76 | 0.6723 | 688.0 | 529.7 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -6.52 | 318.54 | -40.37 | 106.50 | 0.6735 | 553.0 | 485.7 | |
| 0.00 | 1.57 | 0.00 | 1.05 | -6.68 | 318.36 | -40.55 | 106.66 | 0.6763 | 648.0 | 502.7 | |
| 0.00 | 1.40 | 0.00 | 0.96 | -9.69 | 317.98 | -40.93 | 110.69 | 0.6926 | 413.0 | 253.2 | |
| 0.00 | 1.57 | 0.00 | 1.08 | -9.39 | 317.87 | -41.05 | 110.22 | 0.6928 | 527.0 | 449.0 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -9.64 | 317.79 | -41.12 | 110.53 | 0.6947 | 318.0 | 267.9 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -9.21 | 317.77 | -41.14 | 109.93 | 0.6932 | 471.0 | 332.9 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -7.54 | 316.57 | -42.34 | 107.13 | 0.7010 | 622.0 | 486.1 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -8.26 | 316.32 | -42.60 | 108.01 | 0.7067 | 529.0 | 391.1 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -9.44 | 315.44 | -43.48 | 109.22 | 0.7212 | -713.0 | -655.8 | |
| 0.00 | 0.96 | 0.00 | 0.70 | -9.79 | 314.02 | -44.90 | 109.09 | 0.7384 | -761.0 | -632.7 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -10.13 | 313.52 | -45.39 | 109.34 | 0.7450 | -486.0 | -396.5 | |
| 0.44 | 1.40 | 0.32 | 1.04 | -9.66 | 313.22 | -45.70 | 108.61 | 0.7468 | -688.6 | -635.5 | |
| 0.00 | 1.31 | 0.00 | 0.97 | -9.44 | 313.26 | -45.66 | 108.35 | 0.7456 | -756.0 | -618.1 | |
| 0.00 | 1.66 | 0.00 | 1.23 | -9.24 | 313.12 | -45.80 | 108.03 | 0.7464 | -658.0 | -618.5 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -9.57 | 312.75 | -46.16 | 108.32 | 0.7516 | -539.0 | -530.8 | |
| 0.00 | 1.75 | 0.00 | 1.31 | -9.99 | 312.59 | -46.33 | 108.79 | 0.7547 | -130.0 | -250.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -8.93 | 312.64 | -46.27 | 107.46 | 0.7507 | -533.0 | -442.0 | |
| 0.00 | 1.66 | 0.00 | 1.25 | -9.50 | 312.50 | -46.41 | 108.13 | 0.7541 | -779.0 | -587.7 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -8.81 | 312.57 | -46.34 | 107.29 | 0.7510 | -299.0 | -299.9 | |
| 0.00 | 1.49 | 0.00 | 1.13 | -10.14 | 312.25 | -46.67 | 108.85 | 0.7589 | -603.0 | -474.6 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -10.46 | 312.10 | -46.82 | 109.20 | 0.7616 | -475.0 | -364.6 | |
| 8.57 | 11.10 | 6.64 | 8.61 | -8.99 | 310.75 | -48.16 | 106.86 | 0.7712 | -704.6 | -421.7 | |
| 3.58 | 7.95 | 2.83 | 6.28 | -10.12 | 310.07 | -48.84 | 108.03 | 0.7817 | -581.6 | -331.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
