SDO HMI 2014-10-15 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.31 | 446.45 | 38.70 | 264.60 | -21.18 | 16.94 | 19.67 | 214.94 | 0.5505 | 830.6 | 359.5 | |
|
previous
or next observation for the same group /

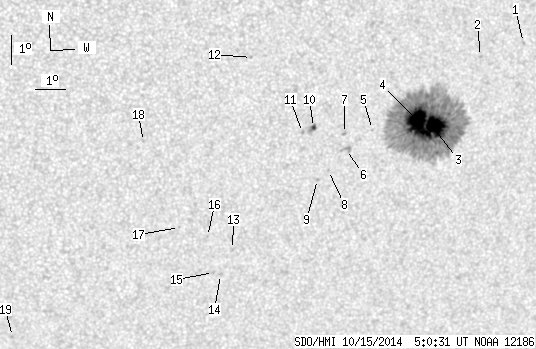

back to the solar disc SDO HMI 2014-10-15 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.73 | -18.52 | 20.18 | 22.91 | 222.33 | 0.5504 | 705.0 | 584.0 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -18.92 | 18.77 | 21.50 | 220.04 | 0.5411 | 651.0 | 584.2 | |
| 32.44 | 418.28 | 19.29 | 248.09 | -21.23 | 17.49 | 20.22 | 215.62 | 0.5553 | 1204.2 | 386.4 | |
| 31.30 | -3.00 | 18.50 | -3.00 | -20.97 | 16.91 | 19.64 | 215.13 | 0.5475 | 1393.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -21.22 | 15.41 | 18.14 | 212.79 | 0.5382 | 393.0 | 393.7 | |
| 0.00 | 4.81 | 0.00 | 2.83 | -21.86 | 14.62 | 17.35 | 210.97 | 0.5399 | 740.0 | 639.2 | |
| 0.00 | 1.66 | 0.00 | 0.97 | -21.32 | 14.48 | 17.21 | 211.34 | 0.5322 | 803.0 | 661.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -22.56 | 14.09 | 16.82 | 209.52 | 0.5446 | -614.0 | -506.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -22.85 | 13.76 | 16.49 | 208.75 | 0.5459 | -697.0 | -535.4 | |
| 1.57 | 5.95 | 0.91 | 3.45 | -21.08 | 13.42 | 16.15 | 209.99 | 0.5212 | 684.9 | 197.8 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -21.24 | 13.07 | 15.80 | 209.30 | 0.5206 | -638.0 | -512.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -18.69 | 11.14 | 13.87 | 208.81 | 0.4732 | -753.0 | -645.5 | |
| 0.00 | 1.66 | 0.00 | 0.99 | -25.19 | 11.15 | 13.88 | 202.93 | 0.5595 | -682.0 | -492.0 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -26.06 | 10.84 | 13.58 | 201.83 | 0.5692 | -618.0 | -528.5 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -25.98 | 10.60 | 13.33 | 201.53 | 0.5668 | -641.0 | -508.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -24.71 | 10.25 | 12.98 | 201.95 | 0.5482 | -709.0 | -576.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -24.38 | 9.27 | 12.01 | 200.69 | 0.5384 | -664.0 | -562.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.41 | 7.83 | 10.57 | 200.49 | 0.4896 | -749.0 | -589.7 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -28.13 | 3.93 | 6.66 | 190.37 | 0.5700 | -722.0 | -592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
