SDO HMI 2014-10-15 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.82 | 439.94 | 38.09 | 262.57 | -21.19 | 16.93 | 20.75 | 216.35 | 0.5598 | 811.5 | 355.7 | |
|
previous
or next observation for the same group /

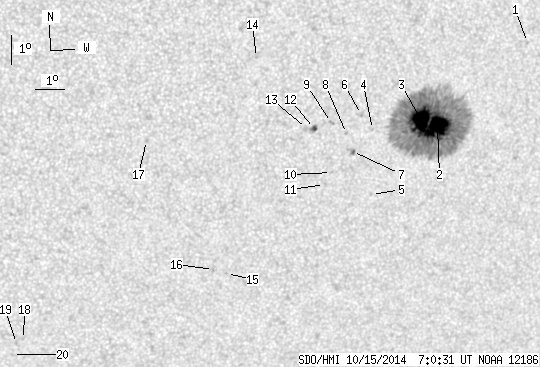

back to the solar disc SDO HMI 2014-10-15 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.78 | -18.55 | 20.19 | 24.02 | 223.63 | 0.5615 | 672.0 | 571.7 | |
| 32.87 | 413.02 | 19.69 | 246.68 | -21.22 | 17.49 | 21.32 | 217.06 | 0.5644 | 1188.8 | 385.8 | |
| 29.11 | -2.00 | 17.33 | -2.00 | -20.99 | 16.91 | 20.73 | 216.57 | 0.5569 | 1404.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -21.23 | 15.27 | 19.09 | 214.11 | 0.5458 | 402.0 | 369.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -23.44 | 15.55 | 19.38 | 212.16 | 0.5741 | 600.0 | 489.9 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -20.71 | 14.83 | 18.65 | 214.07 | 0.5361 | 449.0 | 456.2 | |
| 0.00 | 3.15 | 0.00 | 1.86 | -21.95 | 14.68 | 18.51 | 212.53 | 0.5497 | 784.0 | 651.0 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -21.33 | 14.40 | 18.23 | 212.79 | 0.5401 | 759.0 | 528.2 | |
| 0.00 | 2.19 | 0.00 | 1.28 | -20.95 | 13.85 | 17.67 | 212.41 | 0.5310 | -857.0 | -609.7 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -22.64 | 14.06 | 17.89 | 210.96 | 0.5533 | -544.0 | -480.1 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -23.04 | 13.88 | 17.70 | 210.30 | 0.5568 | -724.0 | -651.4 | |
| 1.84 | 3.32 | 1.07 | 1.94 | -21.13 | 13.30 | 17.12 | 211.42 | 0.5289 | 712.5 | 416.5 | |
| 0.00 | 3.76 | 0.00 | 2.19 | -21.12 | 13.03 | 16.85 | 211.03 | 0.5267 | -616.0 | -334.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -18.70 | 11.12 | 14.95 | 210.64 | 0.4814 | -777.0 | -624.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -26.03 | 10.91 | 14.74 | 203.52 | 0.5751 | -571.0 | -478.2 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -25.88 | 10.45 | 14.27 | 202.98 | 0.5705 | -670.0 | -536.3 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -21.37 | 7.75 | 11.58 | 202.30 | 0.4945 | -644.0 | -571.6 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -28.23 | 4.17 | 8.00 | 192.36 | 0.5751 | -810.0 | -681.0 | |
| 0.00 | 1.57 | 0.00 | 0.95 | -28.37 | 3.94 | 7.77 | 191.95 | 0.5764 | -673.0 | -550.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -28.77 | 3.83 | 7.66 | 191.63 | 0.5816 | -581.0 | -446.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
